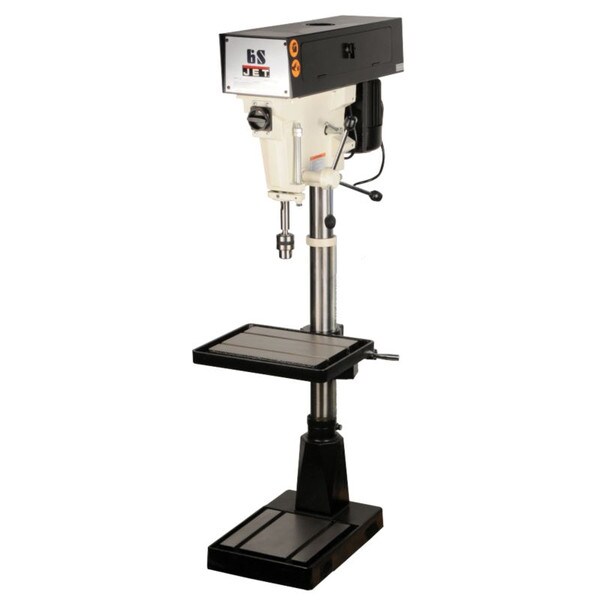

JT9-354500 | 15'' 6-Speed Floor Model Drill Press, 1 HP, 115/230V, 1ph
Overview
Jet 354500
J-A3816, 15 6-Speed Floor Model Drill Press 115/230V 1Ph
JETÂ’s heavy-duty 6-speed Step Pulley Drill Press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes
Features:- Constructed to provide a solid base for drilling
- Offers a greater range in spindle speeds than others in this class
- Larger quill provides greater accuracy
- Large production work table gives the operator the room to work and support for the job
- 3" Column for head support, while the quill is also supported to lessen deflection
Technical Specifications
Type
Step Pulley Drill Press
Drill Type
Step Pulley
Motor - hp
1 HP, 115/230V, 1ph
Drilling Capacity - mild steel
1/2''
Spindle Taper
MT-2
Weight - lbs
394
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
