Overview

Jet 708476

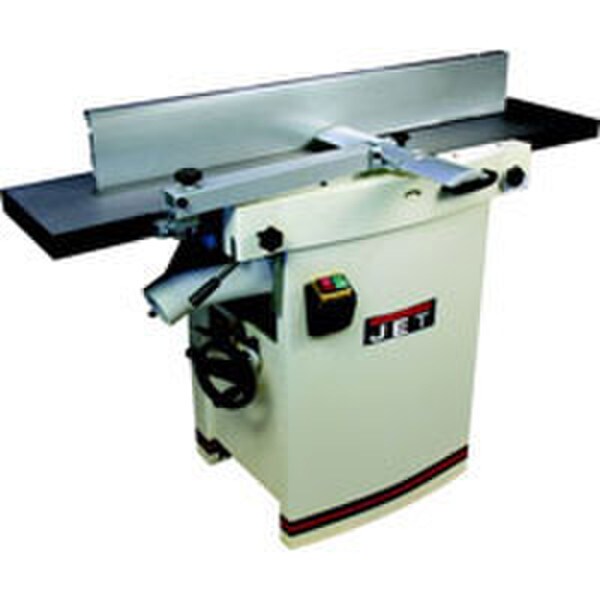

Jjp-12Hh, 12" Planer/Jointer, 3Hp 1Ph 230V, Helical Head

The innovative JET JJP-12HH Helical Head 12" Jointer/Planer takes our award-winning jointer/planer combination machine and makes it an ever better investment. With the addition of our quality helical cutterhead with indexable carbide inserts, the all-new JJP-12HH sets the standard for creating superior stock in your own workshop.

Features:
  • Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
  • Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
  • Extra large aluminum extruded fence with centered controls for quick adjustments
  • Extrmemly quick changeover between jointing and planing functions. Fence does not need to be removed
  • Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
  • Built-in dust chute with 4" dust port used for both jointing and planing operations
  • Large handwheel for quick and precise adjustments of planer table
  • Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
  • Magnetic switch provides safer and more reliable operation
Back

Technical Specifications

Type
Planer/Jointer
Jointer Cutting Capacity - inches
12 x 1/8
Jointer Max Depth of Cut - inches
1/8
Planer Cutting Capacity - inches
12 x 5/32
Planer Max Depth of Cut - inches
5/32
Planer Max Cutting Thickness - inches
8-3/4
Jointer Table Size - inches
55 x 12
Planer Table Size - inches
21-1/4 x 12
Cutterhead Diameter - inches
2-3/4
Cutterhead Speed - rpm
5500
Fence Size - inches
43 x 6
No. of Knives
56
Knife Size - inches
0.59 x 0.59 x 0.10
Amps
12.5
Rated Power - hp
3
Motor Phase
1
Voltage
230V
Motor Type
3hp, 1ph, 230V
Weight - lbs
500
