708493K | JPS-10, 10'' ProShop 1.75HP 1PH 115/230V, 52'' Fence System, Steel Wing w/Riving Knife
Overview

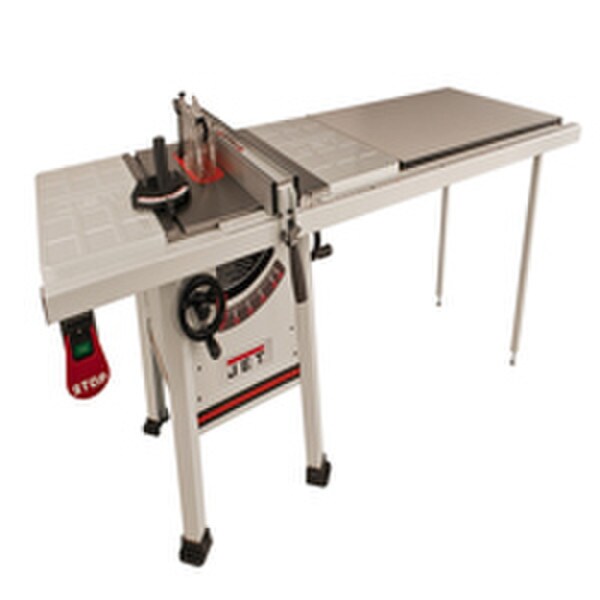

Jet 708493K
Jps-10, 10" Proshop 1.75Hp 1Ph 115/230V, 52" Fence System, Steel Wing W/Riving Knife
The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contactor-style machine. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30” or 52” rip capacity.
Features:- Riving knife maintains close blade proximity to reduce chance of kickback
- Integrated arbor lock is accessed from table top for rapid blade change
- Blade guard and riving knife have quick release for tool-less mounting and removal
- Enclosed cabinet with exclusive leg stand design for easy assembly
- Heavy duty cast iron table with T-style miter gauge slot
Technical Specifications
Type
Table Saw with riving knife
Blade Diameter - inches
10
Arbor Diameter
5/8
Arbor Speed - rpm
4000
Max Depth of cut - inches
3-1/8
Max Dado width - inches
13/16
Max Dado Diameter - inches
8
Table type
Steel
Table size with extension - inches
27 x 44
Miter Gauge Type
T-Slot with Stops
Amps
15/7
Rated Power - hp
1.75
Motor Phase
1
Voltage
115/230V
Motor Type
1.75hp, 1ph, 115/230V
Weight - lbs
302
Technical Documents
Jet ProShop Series Table Saws Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
