JT9-708580 | JBM-5, Benchtop Mortiser, 1/2HP 1PH 115V
Overview

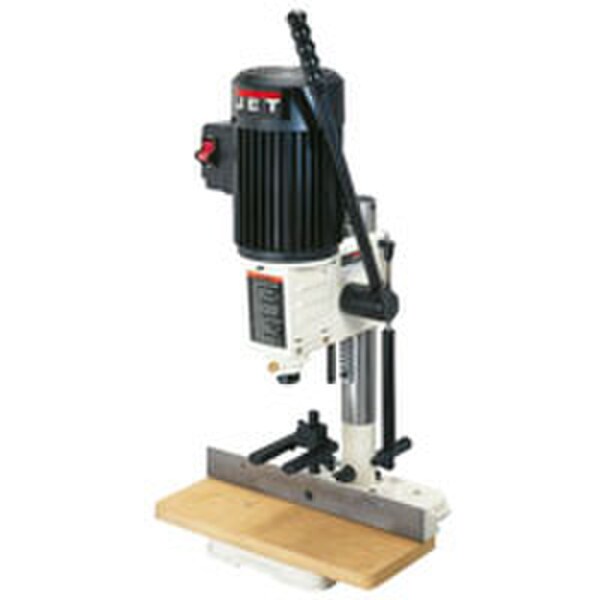

Jet 708580
Jbm-5, Benchtop Mortiser, 1/2Hp 1Ph 115V
This conveniently sized, but powerful machine can be used on a bench or an independent stand. Heavy duty construction provide the durability, consistency and stability needed to produce quality results every time.
Features:- Heavy-duty cast iron and steel construction provides durability and stability during use
- Dependable rack-and-pinion head adjustment gives you accurate position control
- Long, multi-position mortising handle let you reposition the feed handle for easier operation and optimum handle position
- Three-jaw drill chuck keeps a positive grip on mortising bits with up to 3/8" diameter shanks
- Two hinged side doors allow easy access to the drill chuck
Technical Specifications
Type
Benchtop Mortiser
Chuck Size - inches
3/8
Chisel Stroke - inches
4-3/4
Chisel Shank Capacity - inches
5/8, 3/4
Bushing Size - inches
5/8 & 3/4
Fence Size - inches
1-9/16 x 13-3/4
Spindle Speed - rpm
1725
Amps
6
Rated Power - hp
.5
Motor Phase
1
Voltage
115V
Motor Type
.5hp, 1ph, 115V
Weight - lbs
44
Technical Documents
Jet 708580 Mortiser Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
