M-20iA/35M | 6 Axis, 35 kg Small Payload Robot, 1813 mm reach
Overview

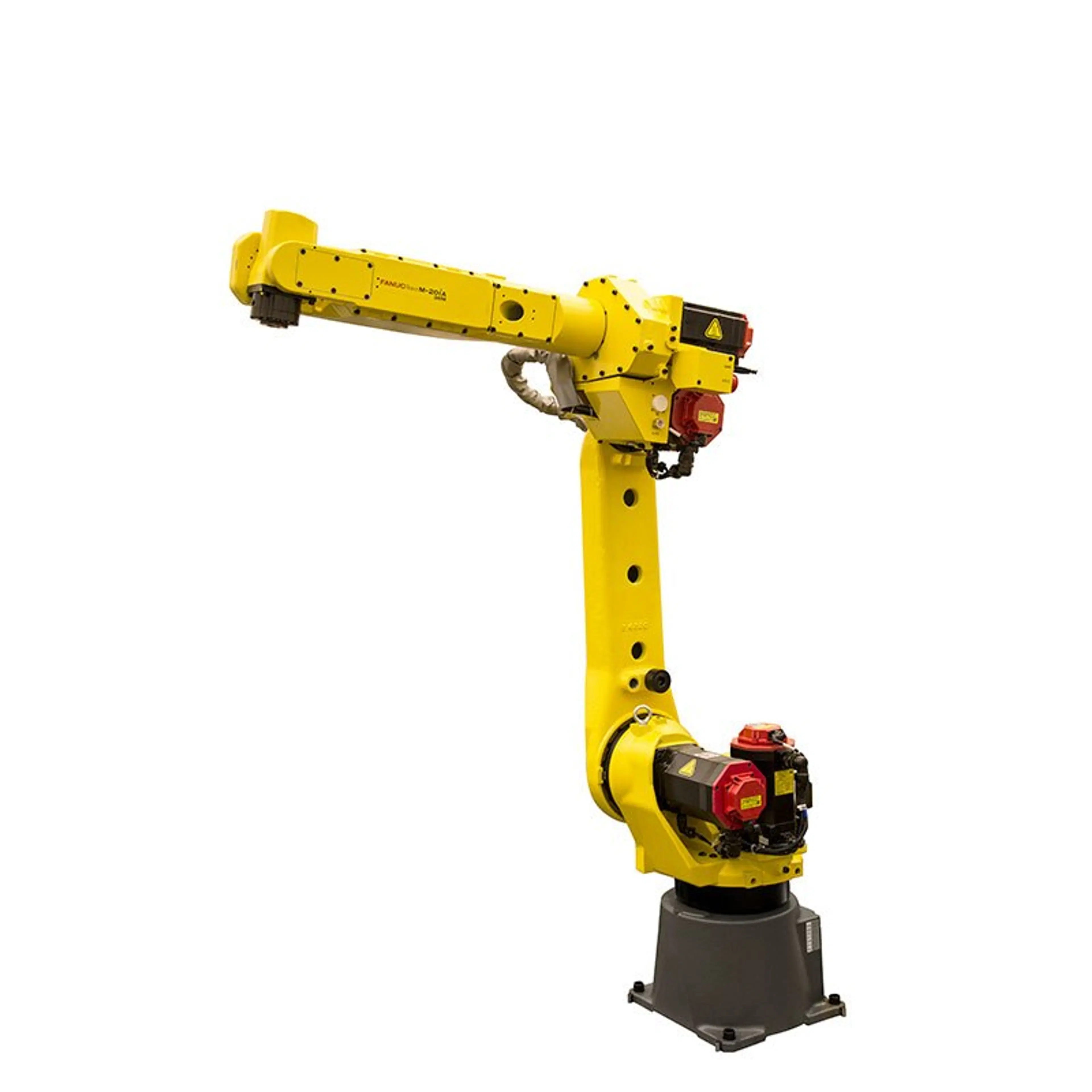

FANUC M-20iA/35M
6 Axis, 35 kg Small Payload Robot, 1813 mm reach
The M-20iA Series Robot is a light payload handling robot with a payload range of 7 - 35 kg.
Features:- Two types of wrists are available - a hollow wrist allows for easy cable wiring; a high intertia wrist ideal for handling a large workpiece.
- Short, Standard, and Long arm variances are available.
- A highly rigid arm and advanced servo technology enable increased acceleration performance. This decreases cycle time; leading to higher productivity.
- Lastest intelligent functions with iRVision (Integrated Vision) are force sensor are available.
Technical Specifications
SKU: M-20iA/35M
Application
Assembly, Picking/Packaging, Machining/Loading, Kitting, Deburring, Part Transfer
Model
M-20iA/35M
Manufacturer
FANUC
SKU
M-20iA/35M
Reach
1813 mm
Installation
Floor, Angle, Wall, Ceiling
No. of Axis
6
Repeatability
0.08 mm
Payload
35 kg
Weight (kg)
252
Technical Documents
FANUC M 10iA and M 20iA Series Small Payload Handling Intelligent Robots Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
