014705 | NFK UNI | Universal Screw Presenter
Overview

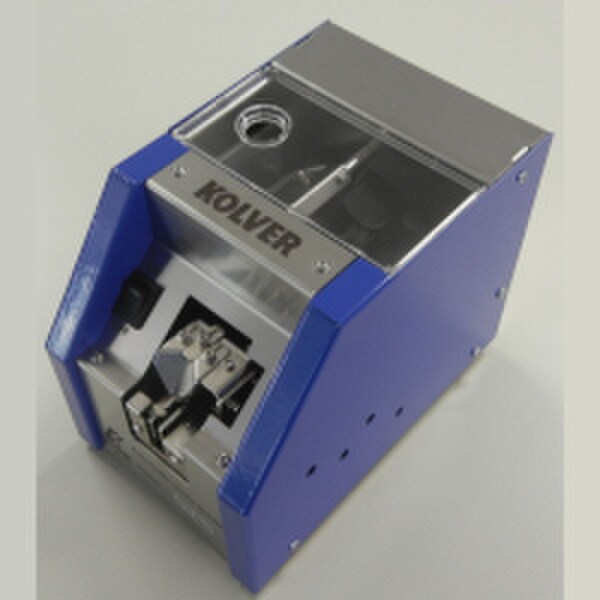

Introducing the Kolver NFK UNI Universal Screw Presenter, a revolutionary tool designed to streamline your assembly processes. This automatic screw supplier brings screws to the pick-up position one after the other, significantly enhancing efficiency and reducing manual labor.
- Screw Diameter Range: 0.06 - 0.2 inches
- Screw Type: Non-countersunk
- Adjustable Rail: Yes
- Magnetized Bit: Required
- Speed Adjustment: Yes
- Manufacturer: Kolver
Features & Benefits
- Universal Compatibility: The NFK UNI is compatible with any non-countersunk screw with a diameter ranging from 0.06 to 0.2 inches. Its adjustable rail allows for quick and easy adaptation to different screw sizes.
- Magnetized Bit: A magnetized bit is required to chuck the screw, ensuring secure holding and precise placement.
- Increased Production: By eliminating manual screw pickup, the NFK UNI significantly increases assembly production, saving you time and resources.
- Adjustable Speed: The trimmer on the side panel enables you to adjust the speed at which screws are supplied, providing greater control over your assembly process.
Technical Specifications
SKU: 014705-kolver
Model
NFK UNI
Screw Size
0.05 - 0.16 in.
Type
Screw Presenter
Manufacturer
Kolver
Capacity
100cc
SKU
014705
Diameter - mm
0.2''
Dimensions
122mm x 132mm x 153mm
Length
0.8 in.
Weight (lbs)
6
Series
NFK
Voltage
110V
Diameter - in
0.2
Technical Documents
Kolver NFK Series Screwfeeders Brochure (PDF)- Kolver NFK Series Screwfeeders Manual (PDF)
- Kolver Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
