PM9-1791079K | PM1300TX-CK, 1.75HP, 1Ph, w/Canister Kit
Overview
Powermatic 1791079K
Pm1300Tx-Ck, 1.75Hp, 1Ph, W/Canister Kit

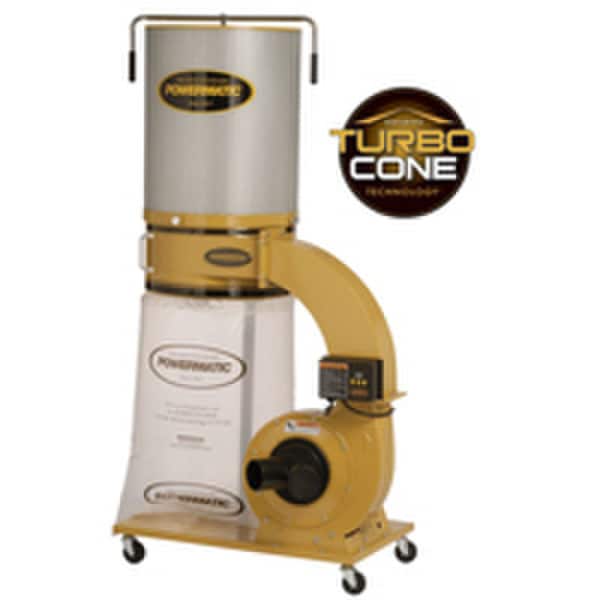

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
Features:- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- All-metal duct construction for rigidity and improved air flow
- Dual 4" dust ports for simultaneous collection from two machines
- 1-3/4HP motor offers plenty of power for effective air movement
- Cloth collection bag with view window uses snap ring for rapid installation/removal
- 10 cubic feet capacity collection bag reduces number of bag changes.
- Tall filter bag requires less cleaning due to the larger surface area
- Four swivel casters for easy maneuverabilty
Technical Specifications
Type
Dust Collector
Motor Type
1.75HP,115/230V,1PH
Air Flow @ 6'' - CFM
1300
Velocity @ 6'' - CFM
5374
Filter Bag Efficiency - micron
96% of 30 micron particles
Impeller diameter - inches
12
Remote Control Type
Infrared
Dimensions - inches
37 x 29 x 72
Weight - lbs
154
