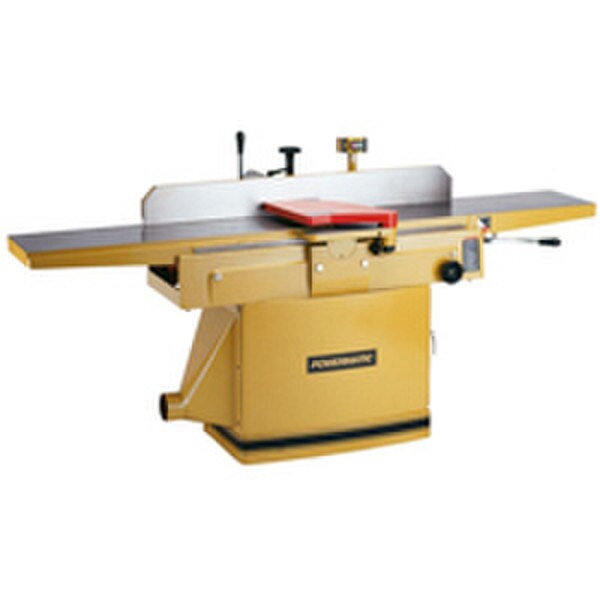

Powermatic 1791307

1285, 12" Jointer, 3Hp 1Ph 230V, Helical Head

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.

• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Large 84" x 12" table surface for heavy-duty work
• Table "lips" on both sides of cutterhead aid in noise reduction
• Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
• 3HP motor provides plenty of power

• Standard Equipment:
• Cutterhead guard
• Heavy duty fence
• Dust port
• Push blocks
• Tool kit
