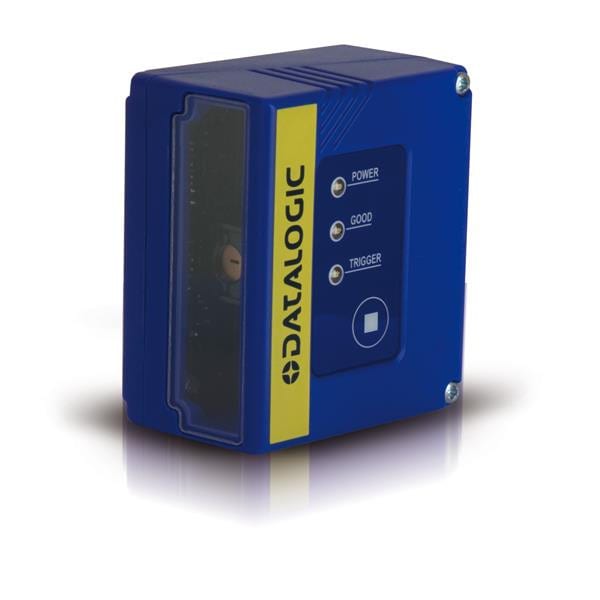

Datalogic TC1200-1000 / 939501108

CCD READER, RS232

TC1200-1000 represents the state-of-the-art-technology in CCD technology setting new standard in Auto-ID market for OEM applications and entry level Factory Automation.

Thanks to innovative CCD technology, TC1200-1000 offers excellent reading performance, great decoding capability, outstanding product reliability combined with ease to use HMI interface.

TC1200-1000 is also available in Scan Engine package very useful for applications where the CCD reader is applied inside a machine.

Features:
  • Linear CCD Technology
  • Excellent Reading performance on bad label codes
  • High Scan Rate @320 scans/sec
  • Very high resolution codes up to 3 mils
  • Serial and USB standard Interface
  • IP64 protection class enclosure
  • Scan Engine module version
  • Easy set up with Aladdin software tools and Programming Bar Code Labels
Applications:
  • Hand Free solutions for Factory Automation
  • Lab Automation and Biomedical analysis machines
  • Kiosk and ATMs terminal service
  • Access Control and Ticketing
  • Game and Lottery Machine
Back

Features & Benefits

  • Linear CCD Technology
Back

Technical Specifications

Operating Modes
OnLine, Serial OnLine, Automatic, Automatic Object Sense, Test
Model
TC1200-1000
Interface
3 LEDs, 1 Button for manual triggering
Type
Identification - Image-Based ID readers
Manufacturer
Datalogic
Operating Temperature Range
0° to +50 °C (+32° to +122 °F)
Permissible relative humidity (%)
90
Power consumption (W)
1.75
SKU
939501108
Dimensions
57 x 31 x 50 mm
Communication
RS-232
Power supply
5 VDC
Output
Two software programmable, optocoupled, 30V, 30mA
Weight (lbs)
0.26
Series
TC1200
Max scans/sec
320
Resolution
0.10 mm, 4 mils
