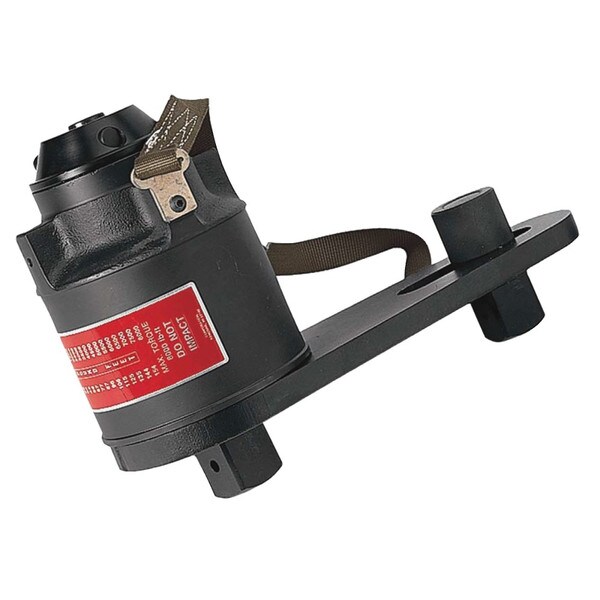

Williams TM-394

Torque Multiplier 5000 Ft-Lb

We offer a comprehensive range of reaction bar torque multipliers. The Hydratight Sweeney 390 series requires a low input torque and needle bearings for high efficency, they have an embedded overload protection through sharable output drives (a replacement is supplied with the multiplier), and they have an angle of turn protractor. The 392 and 393 multiplier are packaged in a sturdy carrying case.

Output Capacity	5,000Ft Lbs
Input Capacity	189 Ft Lbs
Torque Ratio	26:5:1
Input SQ Drive	1/2”
Output SQ Drive	1 1/2”
Accuracy	+/- 5%
Overload Protection	Yes
Anti Backlash	Yes
Head Diameter	5.62 (143)
Height	8.75 (222)
Length	14.9 (378)
Weight	34 Lbs

*Note : When selecting a torque multiplier, sufficient torque should be allowed to break out bolts. We suggest 2x tightening torque.
