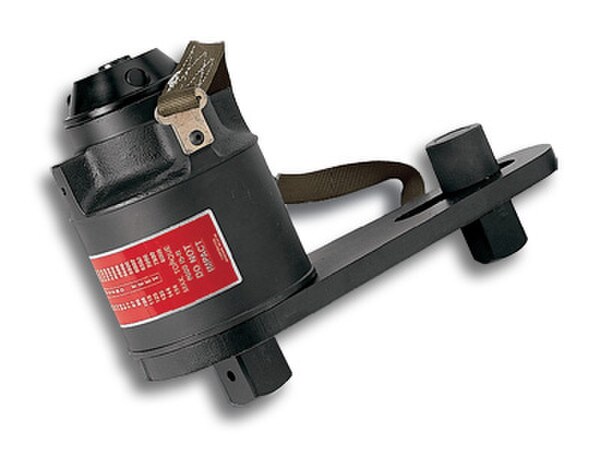

Williams JHW-TM-395 | Torque Multiplier 8000 Ft-Lb
Details
Williams TM-395
Torque Multiplier 8000 Ft-Lb
We offer a comprehensive range of reaction bar torque multipliers. The Hydratight Sweeney 300 series requires a low input torque. Includes features such as needle bearings for high efficiency and overload protection. The standard plate meets the majority of requirements plus we offer customer designs.
Output Capacity 8,000 Ft Lbs (10,850Nm)
Input Capacity 154 Ft Lbs (209 Nm)
Torque Ratio 1:52
Output SQ Drive 1-1/2”
Accuracy +/- 5%
Overload Protection Yes
Anti Backlash Yes
Head Diameter 5.81” (148mm)
Height 10.75” (273mm)
Length 15.2” (387mm)
Weight 50.3 Lbs (22.8 Kg)
*Note : When selecting a torque multiplier, sufficient torque should be allowed to break out bolts. We suggest 2x tightening torque.
Plate Reaction Torque Multipliers
Warning: California Proposition 65Get your tool under our Flex Warranty!
We will fix it or replace it.
FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.
*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.
Features & Benefits
- Input torque holding ratchet - holds multiplier in place during torquing
- Needle bearing construction for high efficiency
- Shearable output squares - to protect tool during overload
- Standard reaction plate meets most job applications
