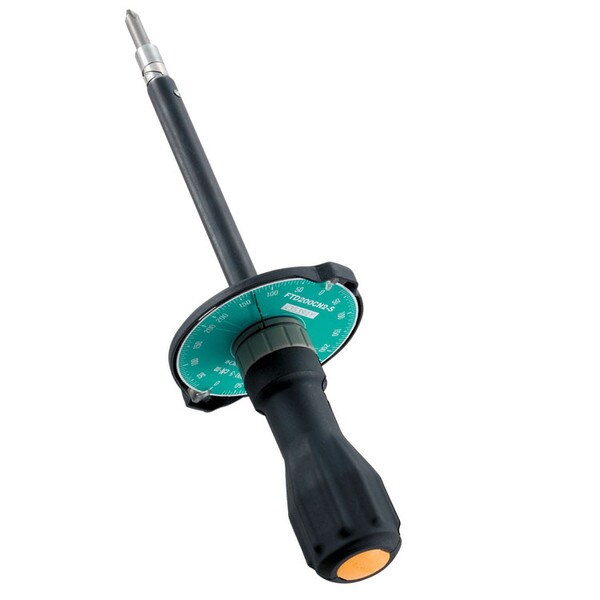

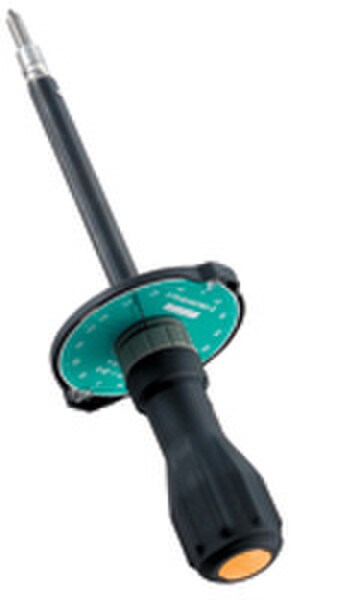

1FTD2-S | Dial Torque Screwdriver, 0.1 - 1 Kgf cm, 0.02 grad.
Overview
Introducing the Tohnichi 1FTD2-S Dial Torque Screwdriver, a remarkable tool designed to enhance the precision and efficiency of your torque measurement tasks. Engineered by Tohnichi, this dial torque screwdriver combines exceptional accuracy with user-friendly features, making it an indispensable addition to any professional's toolkit.
- Min Torque(kgf cm): 0.1
- Max Torque(kgf cm): 1
- Drive Size: 1/4'' hex
- Style: Inline
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Includes Certificate of Calibration
Features & Benefits
- Direct Reading Torque: The 1FTD2-S offers direct reading of torque values, eliminating the need for complex calculations or conversions. This feature simplifies the measurement process and minimizes the risk of errors.
- Bi-Directional Loading: The screwdriver's bi-directional loading capability allows for both clockwise and counterclockwise torque measurements, providing versatility for various applications.
- Multiple Unit Options: The 1FTD2-S comes in various unit options, including SI, Metric, or American units. This flexibility enables users to select the most suitable unit for their specific requirements.

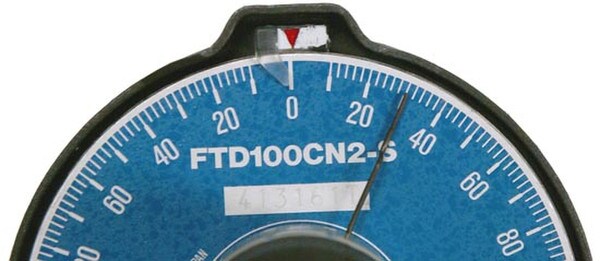

- Brightly Colored Contrasting Scale: Equipped with a brightly colored contrasting scale, this torque screwdriver ensures clear and precise readings, even in challenging lighting conditions.
- Protected Main Pointer: The main pointer is protected, ensuring accurate and reliable measurements over an extended period of time.
Technical Specifications
Model
1FTD2-S
Screw Size
M1.4 - M1.6
Type
Dial Torque Screwdriver
Drive size
1/4'' hex
Wrench Type
Dial Torque Wrench
Manufacturer
Tohnichi
SKU
1FTD2-S
Stock Code
2
Style
Inline
Min Torque (Kgf Cm)
0.1
Max Torque (Kgf Cm)
1
Overall Length
152mm
Weight (lbs)
0.01
Series
FTD-S
Accuracy
±3%
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
