LTD90I | Adjustable Torque Screwdriver, 20 - 90 in lbs, 0.5 grad.
- 360°
- Overview
- Features & Benefits
- Technical Specifications
- Technical Documents
- Frequently Asked Questions
Overview

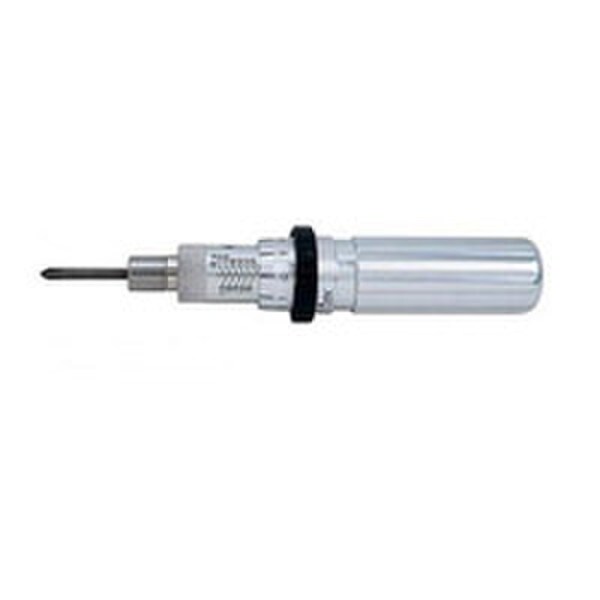

The Tohnichi LTD90I Adjustable Torque Screwdriver is a high-precision tool designed for production assembly and maintenance tasks. With its adjustable torque range of 20-90 in lbs and 0.5 gradation, this screwdriver offers precise control over the amount of torque applied to the fastener.
- Torque Range: 20 - 90 in lbs
- Torque Gradation: 0.5
- Bit Type: 1/4" Hex Root (sold separately)
- Body Type: Inline
- Compliance: ISO 6789 Type II Class D
Features & Benefits
- Adjustable Limiting Torque Mechanism: The LTD90I features an adjustable limiting torque mechanism that allows users to set the desired torque value easily. The external scale on the body of the tool can be twisted and secured with the black lock ring, ensuring accurate torque control.
- Hexagonal Shaped Locker: The hexagonal shaped locker on the tool prevents it from rolling when set down on flat surfaces, providing added convenience and ease of use.
- Standard 1/4" Hex Root Bit: The tool accepts a standard 1/4" hex root bit, which is sold separately, making it compatible with a wide range of fastening applications.
- Ratcheting Mechanism: The LTD90I incorporates a ratcheting mechanism that prevents over-torque and ensures accurate results.
- ISO 6789 Type II Class D Compliant: The LTD90I complies with the calibration procedures of ISO 6789 Type II Class D, making it suitable for international use, including the EU region.
- Tohnichi's toggle clutch torque detection mechanism enhances accuracy
- Accepts standard 1/4" hex root bit (sold separately)
- Counterclockwise tightening model available upon request
Technical Specifications
Model
LTD90I
Stat 1
4% Accuracy
Stat 2
20.0 - 90.0 In Lb
Screw Size
M6 - M7
Type
Adjustable Torque Screwdriver
Drive size
1/4'' hex
Wrench Type
Click Torque Wrench
Manufacturer
Tohnichi
Length (mm)
185
Increments
0.5
Accuracy (+/-)
4%
SKU
LTD90I
Stock Code
2
Style
Inline
Min Torque (In Lb)
20
Max Torque (In Lb)
90
Overall Length
185mm
Weight (lbs)
1.28
Series
LTD
Accuracy
±3%
Technical Documents
Tohnichi Torque Drivers RTD LTD MLD Series Operating Instruction (PDF)- LTD RTD MLD Torque Adjustment (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the Tohnichi LTD90I adjustable torque screwdriver?
How do you set the desired torque value on the Tohnichi LTD90I screwdriver?
The external scale on the body of the Tohnichi LTD90I screwdriver can be easily set to the desired torque value by twisting the body and securing it in place with the black lock ring.
What is the toggle clutch torque detection mechanism on the Tohnichi LTD90I screwdriver?
The toggle clutch torque detection mechanism on the Tohnichi LTD90I screwdriver enhances the accuracy of the tool. When the tool reaches the set torque limit, the user will sense the limit as the tool springs back slightly, indicating that it is time to stop turning.
Is the Tohnichi LTD90I screwdriver compliant with international calibration procedures?
Yes, the Tohnichi LTD90I screwdriver is compliant with calibration procedures of ISO 6789 Type II Class D, making it suitable for international use, including the EU region.
