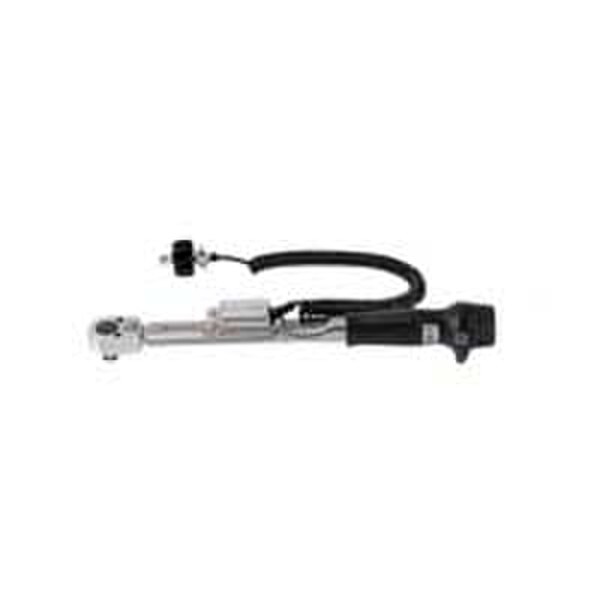

QSPCALS70N | Error Proofing Torque Wrench, Preset, Rotary, 20 - 70 Nm
Overview
Introducing the Tohnichi QSPCALS70N Error Proofing Torque Wrench, an exceptional tool designed to revolutionize your tightening processes. This rotary slip-type torque wrench combines precision, efficiency, and error-proofing capabilities to elevate your assembly operations to new heights.
- Min Torque(Nm): 20
- Max Torque(Nm): 70
- Accuracy: +/-4 % of indicated value
- Drive Size: Square 3/8"(9.5mm)
- Length(mm): 430
- Weight(g): 1000
- Manufacturer: Tohnichi
Features & Benefits
- Error-Proofing Mechanism: The QSPCALS70N torque wrench effectively prevents under-tightening, over-tightening, and other human errors, ensuring accurate and consistent fastening results.
- Rotary Slip Function: When the set torque is reached, the wrench generates a rotary slip, accompanied by a simultaneous output of a contact signal from the integrated limit switch.
- PLC Compatibility: Signals from the limit switch can be captured on a programmable logic controller (PLC) or similar device, allowing for the establishment of a Tightening Assurance System with assembly line interlock controls.
- Wired Limit Switch: Equipped with a durable curly cord, the limit switch enables easy connection to a CNA-4mk3 count checker (sold separately), facilitating the creation of a tightening count management system.
- Versatile Connectivity: The QSPCALS70N can be used with the R-FH256 receiver (sold separately) and the I/O-FH256 multi-box (sold separately), enabling the recognition of IDs from up to four torque wrenches. This connectivity simplifies the setup of an error-proofing system in conjunction with the CN
Technical Specifications
Model
QSPCALS70N
Type
Error Proofing Torque Wrench, Preset, Rotary
Wrench Type
Electronic Torque Wrench
Manufacturer
Tohnichi
SKU
QSPCALS70N
Stock Code
2
Min Torque (Nm)
20
Max Torque (Nm)
70
Overall Length
346
