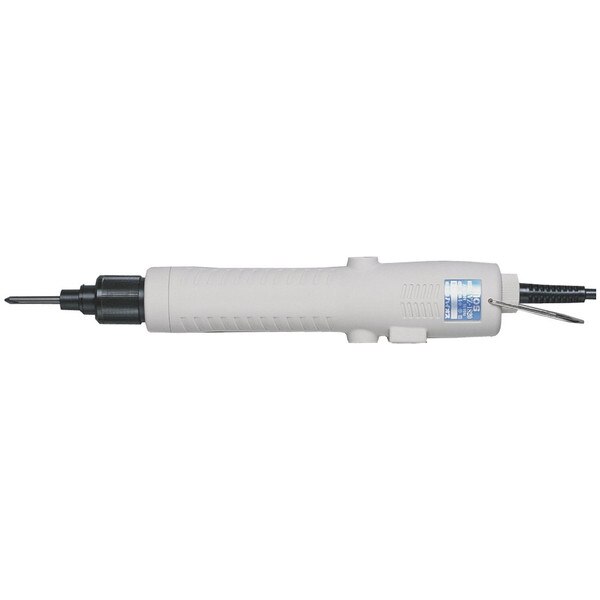

VZ-1820PS | 100V Electric Torque Screwdriver, 0.4 - 1.8 Nm, Push-to-Start
Overview
Introducing the VZ-1820PS 100V Electric Torque Screwdriver, a powerful and versatile assembly tool designed to streamline your fastening processes. This electric screwdriver from HIOS combines precision, efficiency, and durability to meet the demands of heavy-duty operations.
- Min Torque(Nm): 0.4
- Max Torque(Nm): 1.8
- Drive Size: H5
- Free Speed(RPM): 2000
- Voltage: 100V
- Start Type: Push-to-Start
Features & Benefits
- Impressive Torque Range: With a torque range of 0.4 to 1.8 Nm, the VZ-1820PS screwdriver effortlessly handles various fastening applications, ensuring accurate and consistent results.
- Push-to-Start Convenience: The convenient push-to-start operation allows for effortless and precise control, enhancing productivity and reducing fatigue during assembly tasks.
- Built-in Controller: The built-in controller ensures precise torque control, preventing overtightening and damage to delicate components.
- Transformerless Design: The innovative transformerless construction eliminates the need for a bulky transformer, resulting in a lightweight and compact tool that minimizes user fatigue.
Technical Specifications
Series
VZ
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H5
Free Speed (RPM)
2000
Torque Range (in lb)
3.5 - 15.9
Torque Range (Nm)
0.4 - 1.8
Torque Range (kgf cm)
4.08 - 18.4
Technical Documents
HIOS Electric Torque Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the VZ-1820PS?
What type of application is the VZ-1820PS best suited for?
Electric Screwdrivers like the VZ-1820PS, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the VZ-1820PS?
The VZ-1820PS can go up to 2000 rpm.
How do I set the torque on the VZ-1820PS?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the VZ-1820PS have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
