8433 2321 52 | ETP ST101-1500-25-F | Electric Nutrunner with fan, 450 - 1500 Nm, 47 rpm

(0)No Reviews yet
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

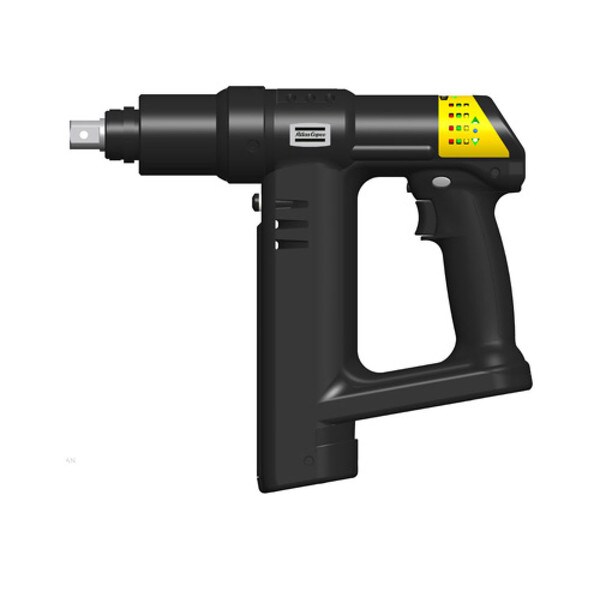

Atlas Copco 8433 2321 52

Etp St Revo Pistol Grip Nutrunner W/ Fan, 332-1106 Ft Lbs


Atlas Copco's unique Tensor motors give the Tensor range outstanding spindle speeds and, thus, help you achieve lower cycle times in your operation. Exceptional ergonomics in terms of balance, grip and low weight make the tools a favorite of the operators and increase individual productivity. All Tensor tools are equipped with LEDÂ’s that will indicate the tightening result, green light for tightening OK and red light for NOK. At Atlas Copco we believe that quality is the road to lowest cost of operation over time. A maintained Tensor tool produces the same performance year after year at minimum and predictable costs while ensuring highest possible uptime. The second generation of Tensor tools, Tensor ST, also focusing on safety critical applications, was developed with low weight and productivity in mind.

Features:
  • High speed nutrunner reduces tightening cycle times, thus increasing productivity
  • Improved ergonomics due its light weight for operator comfort
  • Internal bus connection for intelligent accessories, such as a barcode reader and torque selector, reducing time on unnecessary operator movements to read identifiers (e.g.: VIN) or pick up sockets to change program settings
  • Configurable LEDÂ’s and an integrated speaker for indicating results via audio signals for operator feedback increasing assembly quality
  • Pistol grip tool fits both hand-held and fixtured application
  • Due its reduced length compared to a straight tool, it is well-suited for a more compact design on some fixtured applications where space is a limitation
  • Pistol grip model is well-suited for handheld applications – its compact size and reduced weight increase operator performance

Features & Benefits

  • Unique and patented 360 degree swivel with transducer.
  • Ultra-compact size improves access.
  • Reduced weight means less need for fixtures
  • Program selection is made directly on tool.

Technical Specifications

Model
ETP ST101-1500-25-F
Recommended Torque Range (Ft Lb)
332-1106
Drive size
1'' square
Manufacturer
Atlas Copco
Length (mm)
402
Min Torque (Ft Lb)
332
Free Speed (RPM)
47
SKU
8433 2321 52
Stock Code
3
Style
Pistol Grip
Max Torque (In Lb)
13276
Max Torque (Ft Lb)
1106
Min Torque (Nm)
450
Max Torque (Nm)
1500
Max Free Speed (rpm)
47
Weight (lbs)
19.4
Series
Tensor ST REVO
Drive Type
1"square
