720A107 | 7/64 in. Solid Carbide Screw Machine Drill Bit, 135 deg. Split Point
Overview

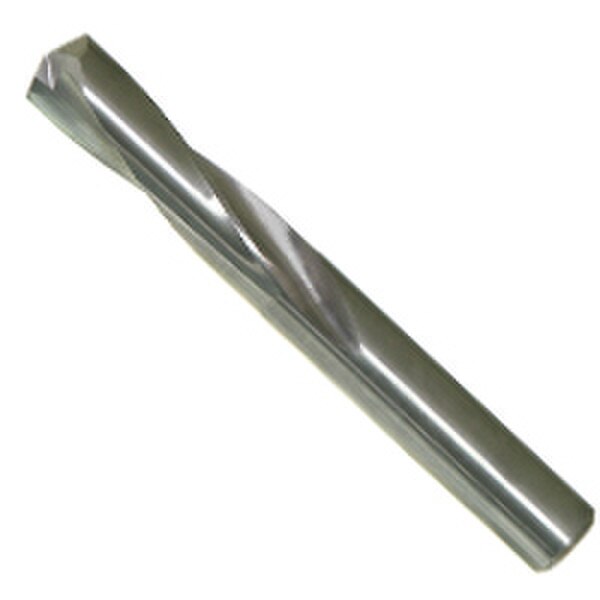

Drillco 7/64 in. Solid Carbide Screw Machine Drill Bit, 135 deg. Split Point
720A107
7/64 in. Solid Carbide Screw Machine Drill Bit, 135 deg. Split Point by Drillco, available to order from Flexible Assembly Systems. Do you see this Screw Machine Drill Bit available for a much lower price? Contact Customer Service about Price Matching!
Slow helix 135° split point provides ease of penetration and increases edge strength. Heavy-duty web, short flute and overall lengths increase strength and rigidity. Ideally suited for drilling difficult materials (up to Rc 60), including nickel alloys, chrome alloys, steel weldments, titanium alloys, high temperature alloys, and stainless steel weldments.
Technical Specifications
Size
7/64 in.
Material
Solid Carbide
Type
Screw Machine Drill Bit
Manufacturer
Drillco
Finish
Bright
SKU
720A107
Point Size
135 deg. Split Point
Stock Code
3
Shank
Straight
UPC
045997299471
Shank Type
Straight
Overall Length
1-13/16 in.
Flute Length
13/16 in.
Bit Size
7/64 in.
Series
720
Technical Documents
Drillco Product Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
