Force Test Stand
Mark-10's ES series manual force test stand models are compact and economical solutions for compression and tensile testing of small samples
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Capacity | Load Capacity | Price | Qty | |
|---|---|---|---|---|---|---|

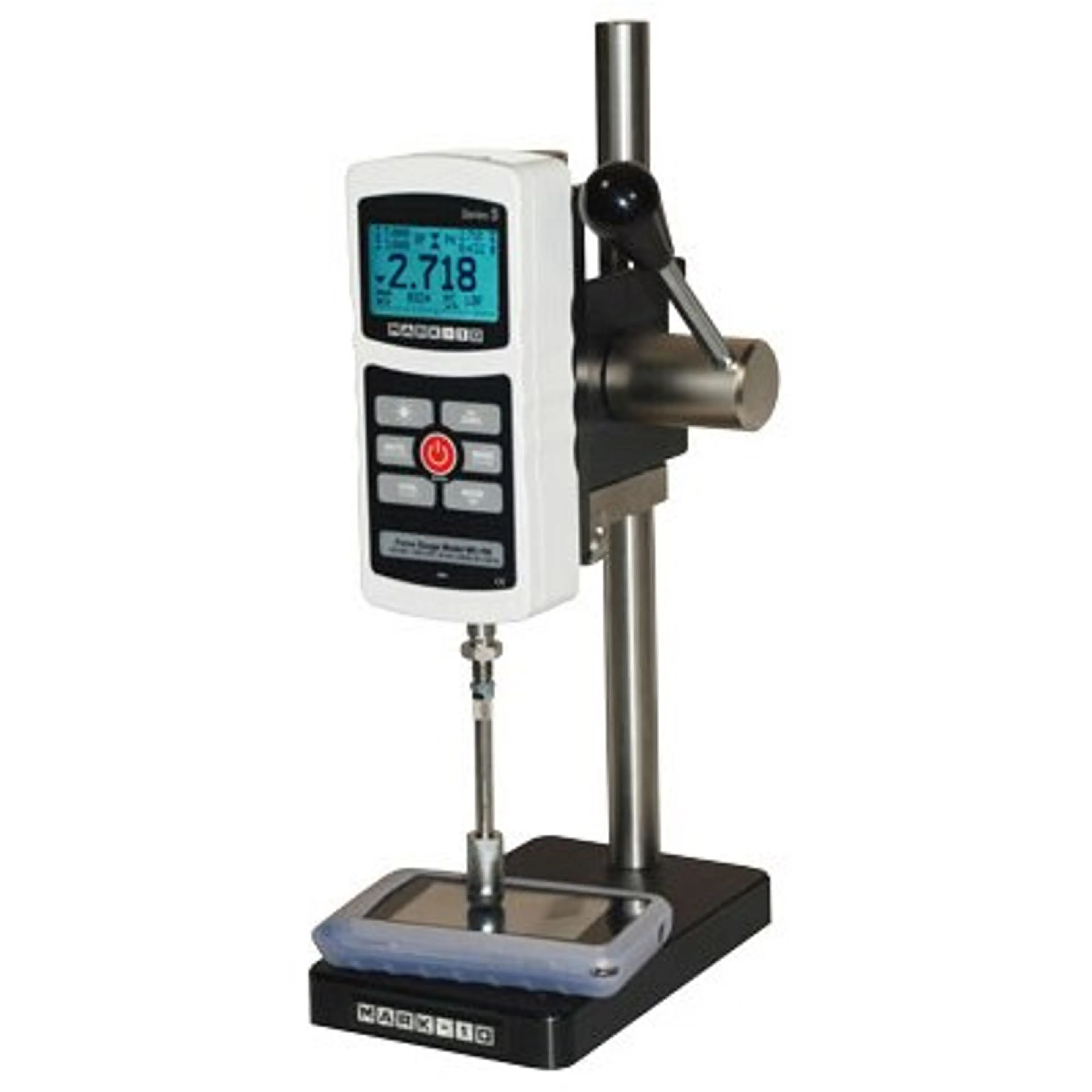

 ES05ES05 | Test stand, lever-operated, 30 lbF / 150 N$722.00 | ES05 | 30 lbF / 150 N | 30 lbF / 150 N | $722.00 | 1 | View details |
 ES10ES10 | Test stand, lever-operated, 100 lbF / 500 N$722.00 | ES10 | 100 lbF / 500 N | 100 lbF / 500 N | $722.00 | 1 | View details |

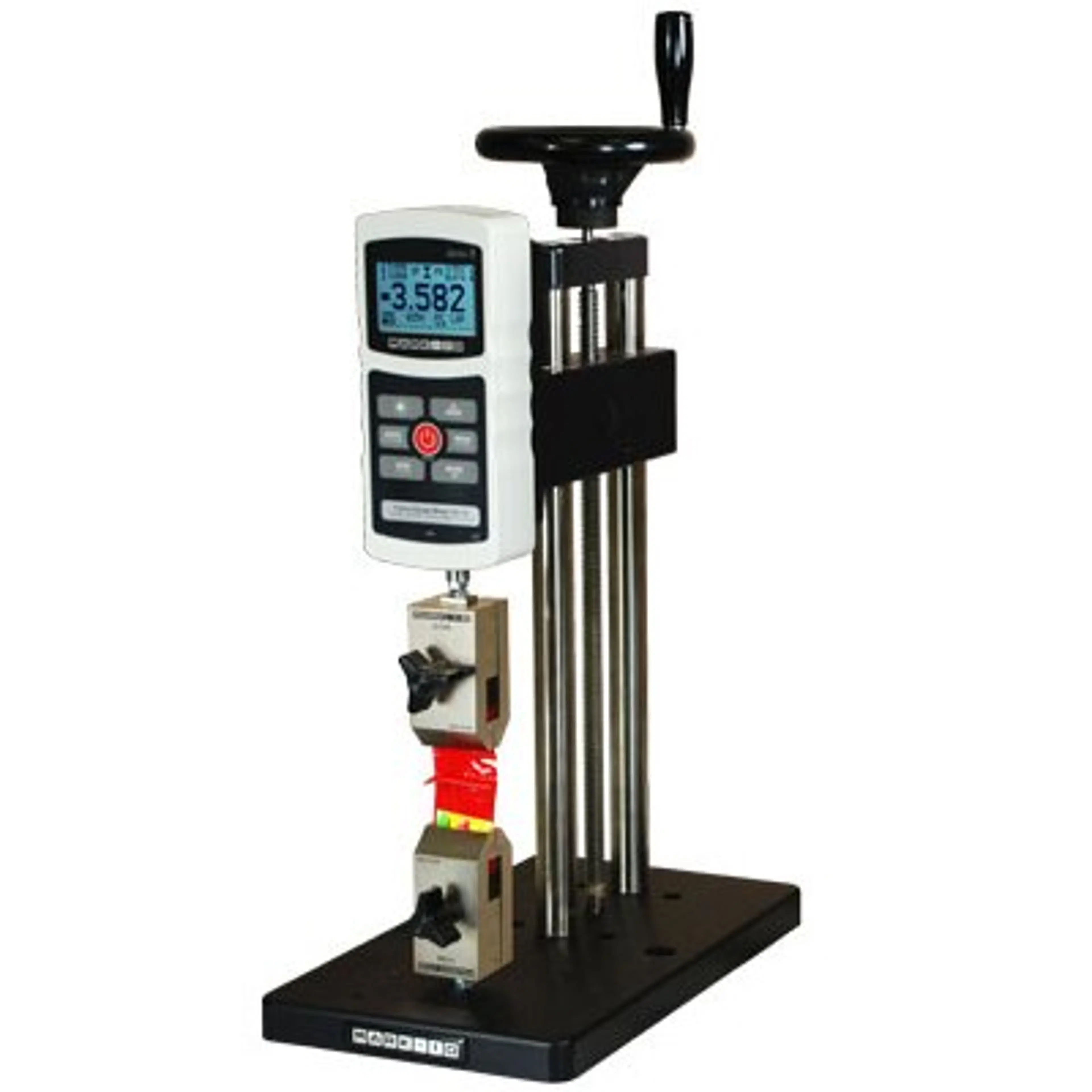

 ES20ES20 | Test stand, hand wheel-operated, 100 lbF / 500 N$807.50 | ES20 | 100 lbF / 500 N | 100 lbF / 500 N | $807.50 | 1 | View details |

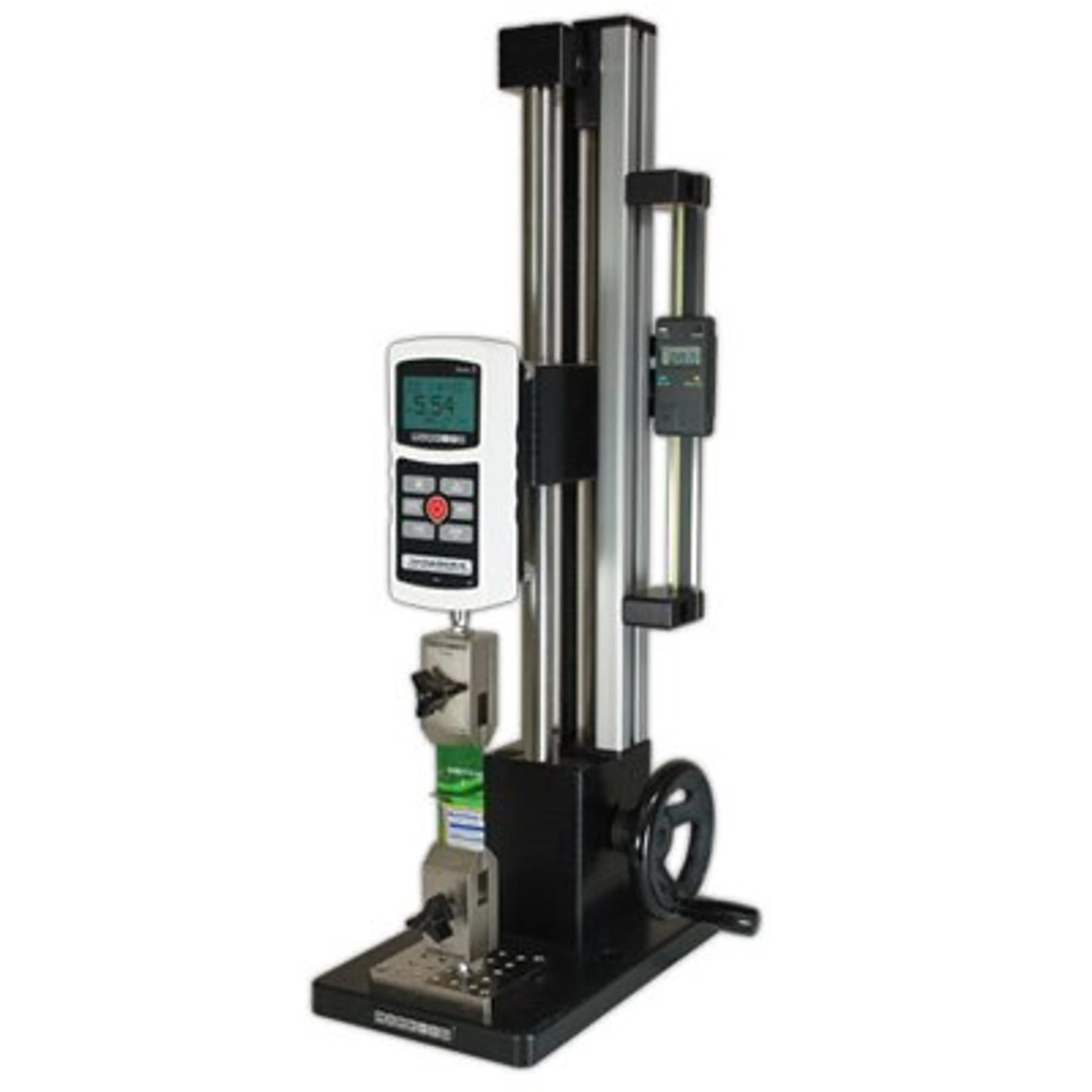

 ES30ES30 | Test stand, hand wheel-operated, 200 lbF / 1 kN$1,159.00 | ES30 | 200 lbF / 1 kN | 200 lbF / 1 kN | $1,159.00 | 1 | View details |
Recommended Accessories
4 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 15-100415-1004 | MESUR™ gauge software$638.40 | $638.40 | 1 | View details |
 Series 3 Force Gauge | 1 | View details | |
 Series 4 Force Gauge | 1 | View details | |
 Series 5 Force Gauge | 1 | View details |
Details
Product information
Overview

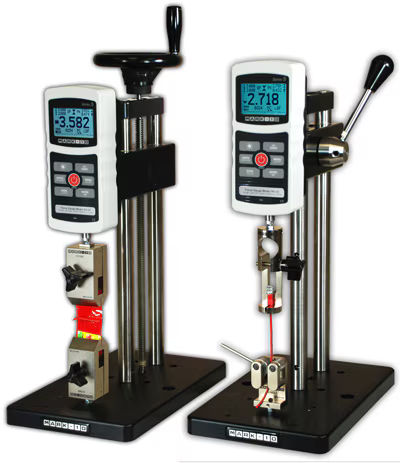

The ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use these stands with force gauges and grips to create complete and economical testing systems.
- Small size
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting
- Large, removable baseplate with 5 #10-32 UNF holes for fixture mounting
- Competitor force gauge mounting kits available
| ES10 | ES20 | |
| Maximum Force | 100lb [500 N] | |
| Maximum Travel | 9" [229 mm] | |
| Loading Method | Lever (can be placed in 3 positions for ease of operation) | Top-mounted hand wheel |
| Travel Rate | 1.050" [26.7 mm] / lever rev. | 0.083" [2.1 mm] / wheel rev. |
| Weight | 10 lb [4.5 kg] | |
| Features & Benefits | |
|---|---|
| Capacity: 100 Lbs | |
| Travel: Up to 9" | |
| From $461 |
