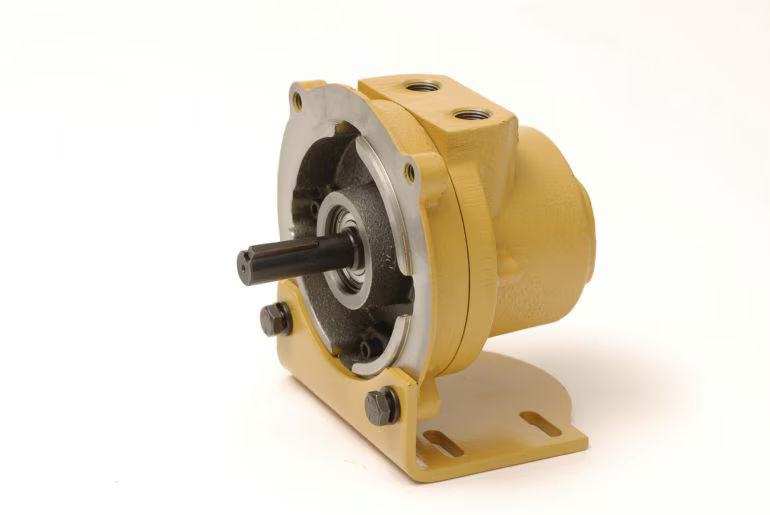

MVA Series Direct Drive Air Motors
Direct drive multi-vane air motors from 0.75 hp to 10.5 hp with speed adjustability through air controls.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Air Inlet Size | Drive Size | Max Torque (ft-lb) | Price | Qty | |
|---|---|---|---|---|---|---|
 MVA017AMVA017A | Multi-Vane Air Motor, direct drive, 1.93 hp, 9.5 Nm stall, reversible$991.69 | 3/8" NPT | 5/8" | 7 | $991.69 | 1 | View details |
 MVA017BMVA017B | Multi-Vane Air Motor, direct drive, 1.93 hp, 9.5 Nm stall, reversible$976.31 | 3/8" NPT | 5/8" | 7 | $976.31 | 1 | View details |
 MVA034AMVA034A | Multi-Vane Air Motor, direct drive, 4.15 hp, 17.4 Nm stall, reversible$1,199.25 | 1/2" NPT | 8-Jul | 13 | $1,199.25 | 1 | View details |
| MVA034BMVA034B | Multi-Vane Air Motor, direct drive, 4.15 hp, 17.4 Nm stall, reversible$1,168.50 | 1/2" NPT | 8-Jul | 13 | $1,168.50 | 1 | View details |
Details
Product information
Overview
Direct drive multi-vane air motors from 0.75 hp to 10.5 hp with speed adjustability through air controls.
Features:- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
- No shock starts: Air cushioned start-up cuts stress on your equipment.
- Mounting options: Face and foot mount.
| Features & Benefits | |
|---|---|
| Max Free Speed: Up to 6,250 rpm | |
| Stall Torque: Up to 12.8 ft lbs | |
| 1 Year Warranty | |
| Max Free Speed: Up to 6 | |
| 250 rpm | |
| Stall Torque: Up to 12.8 ft lbs,1 Year Warranty |
