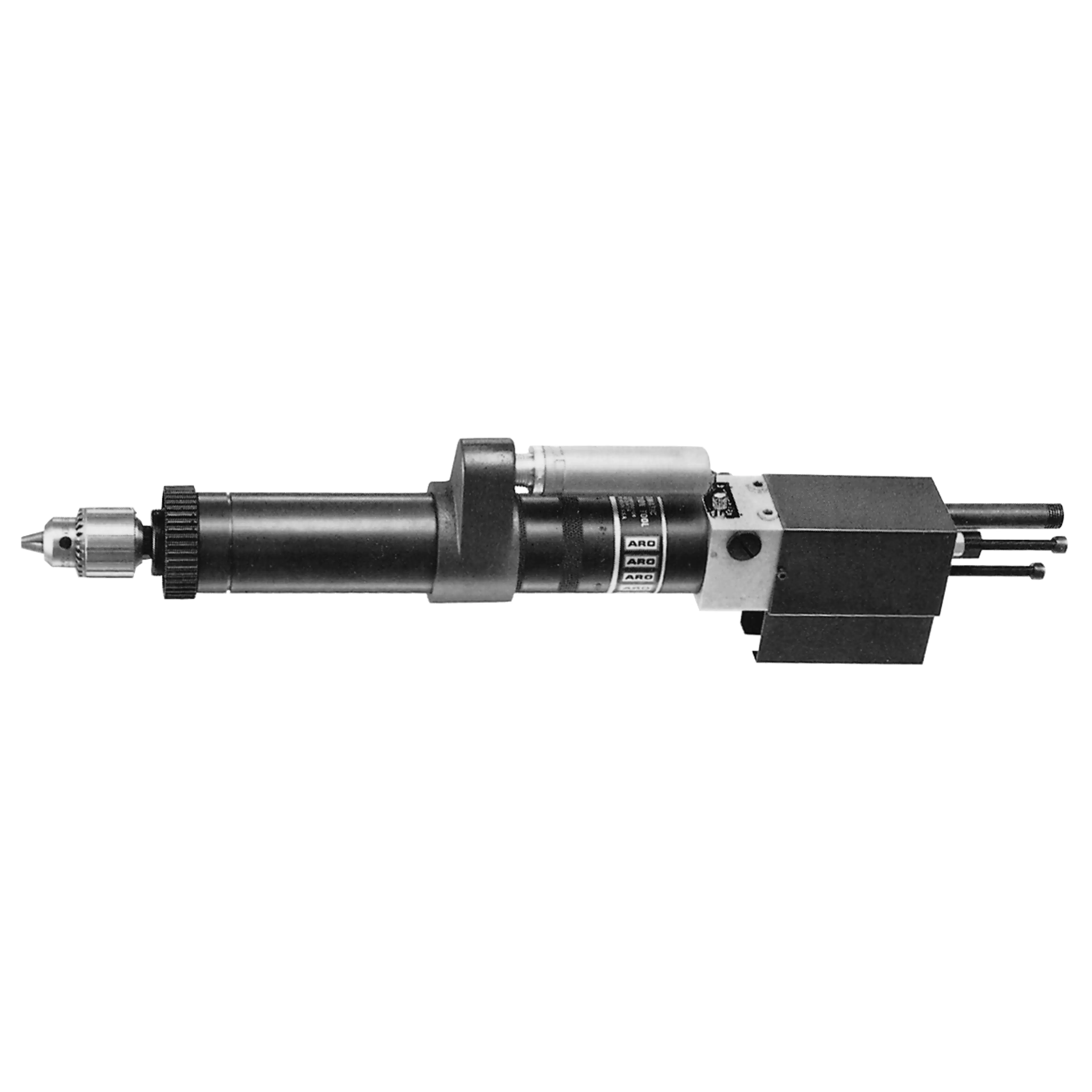

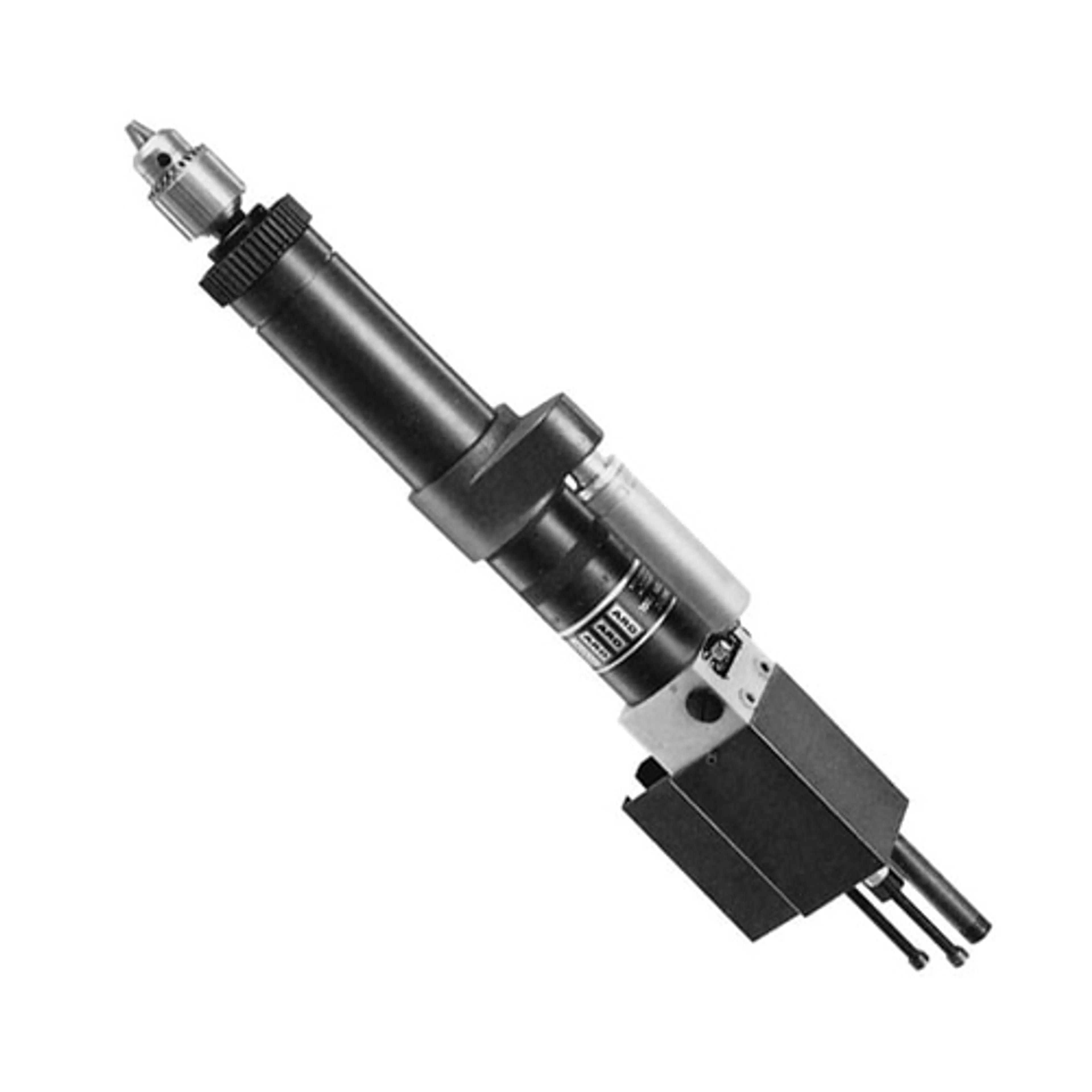

Par-A-Matic Self Feed Drills

Paramatic Self Feed Drills provide the selection, performance, and degree of precision to automate a wide range of secondary machining applications simply and economically.

Models and pricing below

Documents1 file

PDFIngersoll Rand Automatic Machining Tools Catalog (PDF)Open

Models Available

39 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Model	Free Speed (RPM)	Type	Price	Qty
8255-101-18255-101-1 \| Self Feed Drill, 5/16'' chuck, 10000 rpm$2,685.08	8255-101-1	10000	Self Feed Drill	$2,685.08	1	View details
8255-101-28255-101-2 \| Self Feed Drill, 5/16'' chuck, 10000 rpm$2,951.59	8255-101-2	10000	Self Feed Drill	$2,951.59	1	View details
8255-101-38255-101-3 \| Self Feed Drill, 5/16'' chuck, 10000 rpm$3,043.65	8255-101-3	10000	Self Feed Drill	$3,043.65	1	View details
8255-172-18255-172-1 \| Self Feed Drill, 5/16'' chuck, 17000 rpm$2,643.88	8255-172-1	17000	Self Feed Drill	$2,643.88	1	View details
8255-172-28255-172-2 \| Self Feed Drill, 5/16'' chuck, 17000 rpm$2,824.78	8255-172-2	17000	Self Feed Drill	$2,824.78	1	View details
8255-172-38255-172-3 \| Self Feed Drill, 5/16'' chuck, 17000 rpm$2,985.06	8255-172-3	17000	Self Feed Drill	$2,985.06	1	View details
8255-A14-18255-A14-1 \| Self Feed Drill, 5/16'' chuck, 1450 rpm$2,601.39	8255-A14-1	1450	Self Feed Drill	$2,601.39	1	View details
8255-A14-28255-A14-2 \| Self Feed Drill, 5/16'' chuck, 1450 rpm$2,859.54	8255-A14-2	1450	Self Feed Drill	$2,859.54	1	View details
8255-A14-38255-A14-3 \| Self Feed Drill, 5/16'' chuck, 1450 rpm$3,043.65	8255-A14-3	1450	Self Feed Drill	$3,043.65	1	View details
8255-A21-18255-A21-1 \| Self Feed Drill, 5/16'' chuck, 2100 rpm$2,513.84	8255-A21-1	2100	Self Feed Drill	$2,513.84	1	View details
8255-A21-28255-A21-2 \| Self Feed Drill, 5/16'' chuck, 2100 rpm$2,692.16	8255-A21-2	2100	Self Feed Drill	$2,692.16	1	View details
8255-A21-38255-A21-3 \| Self Feed Drill, 5/16'' chuck, 2100 rpm$2,898.16	8255-A21-3	2100	Self Feed Drill	$2,898.16	1	View details
8255-A28-18255-A28-1 \| Self Feed Drill, 5/16'' chuck, 2800 rpm$2,513.84	8255-A28-1	2800	Self Feed Drill	$2,513.84	1	View details
8255-A28-28255-A28-2 \| Self Feed Drill, 5/16'' chuck, 2800 rpm$2,717.91	8255-A28-2	2800	Self Feed Drill	$2,717.91	1	View details
8255-A28-38255-A28-3 \| Self Feed Drill, 5/16'' chuck, 2800 rpm$2,898.16	8255-A28-3	2800	Self Feed Drill	$2,898.16	1	View details
8255-A5-18255-A5-1 \| Self Feed Drill, 5/16'' chuck, 500 rpm$2,738.51	8255-A5-1	500	Self Feed Drill	$2,738.51	1	View details
8255-A5-28255-A5-2 \| Self Feed Drill, 5/16'' chuck, 500 rpm$2,948.38	8255-A5-2	500	Self Feed Drill	$2,948.38	1	View details
8255-A5-38255-A5-3 \| Self Feed Drill, 5/16'' chuck, 500 rpm$3,137.64	8255-A5-3	500	Self Feed Drill	$3,137.64	1	View details
8255-A50-18255-A50-1 \| Self Feed Drill, 5/16'' chuck, 5000 rpm$2,513.84	8255-A50-1	5000	Self Feed Drill	$2,513.84	1	View details
8255-A50-28255-A50-2 \| Self Feed Drill, 5/16'' chuck, 5000 rpm$2,692.16	8255-A50-2	5000	Self Feed Drill	$2,692.16	1	View details
8255-A50-38255-A50-3 \| Self Feed Drill, 5/16'' chuck, 5000 rpm$2,898.16	8255-A50-3	5000	Self Feed Drill	$2,898.16	1	View details
8255-A8-18255-A8-1 \| Self Feed Drill, 5/16'' chuck, 850 rpm$2,601.39	8255-A8-1	850	Self Feed Drill	$2,601.39	1	View details
8255-A8-28255-A8-2 \| Self Feed Drill, 5/16'' chuck, 850 rpm$2,948.38	8255-A8-2	850	Self Feed Drill	$2,948.38	1	View details
8255-A8-38255-A8-3 \| Self Feed Drill, 5/16'' chuck, 850 rpm$3,137.64	8255-A8-3	850	Self Feed Drill	$3,137.64	1	View details
8258-C14-18258-C14-1 \| Self Feed Twin Drill, 1/4'' chuck, 1450 rpm	8258-C14-1	1450	Self Feed Twin Drill		1	View details
8258-C14-28258-C14-2 \| Self Feed Twin Drill, 1/4'' chuck, 1450 rpm$4,897.65	8258-C14-2	1450	Self Feed Twin Drill	$4,897.65	1	View details
8258-C14-38258-C14-3 \| Self Feed Twin Drill, 1/4'' chuck, 1450 rpm$5,079.83	8258-C14-3	1450	Self Feed Twin Drill	$5,079.83	1	View details
8258-C21-18258-C21-1 \| Self Feed Twin Drill, 1/4'' chuck, 2100 rpm$4,528.78	8258-C21-1	2100	Self Feed Twin Drill	$4,528.78	1	View details
8258-C21-28258-C21-2 \| Self Feed Twin Drill, 1/4'' chuck, 2100 rpm	8258-C21-2	2100	Self Feed Twin Drill		1	View details
8258-C21-38258-C21-3 \| Self Feed Twin Drill, 1/4'' chuck, 2100 rpm	8258-C21-3	2100	Self Feed Twin Drill		1	View details
8258-C28-28258-C28-2 \| Self Feed Twin Drill, 1/4'' chuck, 2800 rpm$4,728.99	8258-C28-2	2800	Self Feed Twin Drill	$4,728.99	1	View details
8258-C50-18258-C50-1 \| Self Feed Twin Drill, 1/4'' chuck, 5000 rpm$4,528.78	8258-C50-1	5000	Self Feed Twin Drill	$4,528.78	1	View details
8258-C50-28258-C50-2 \| Self Feed Twin Drill, 1/4'' chuck, 5000 rpm$4,728.99	8258-C50-2	5000	Self Feed Twin Drill	$4,728.99	1	View details
8258-C50-38258-C50-3 \| Self Feed Twin Drill, 1/4'' chuck, 5000 rpm	8258-C50-3	5000	Self Feed Twin Drill		1	View details
8258-C8-18258-C8-1 \| Self Feed Twin Drill, 1/4'' chuck, 850 rpm	8258-C8-1	850	Self Feed Twin Drill		1	View details
8266-A12-28266-A12-2 \| Self Feed Offset Drill, 3/8'' chuck, 1200 rpm$3,917.21	8266-A12-2	1200	Self Feed Offset Drill	$3,917.21	1	View details
8266-A17-28266-A17-2 \| Self Feed Offset Drill, 3/8'' chuck, 1750 rpm$3,973.86	8266-A17-2	1750	Self Feed Offset Drill	$3,973.86	1	View details
8266-A23-28266-A23-2 \| Self Feed Offset Drill, 3/8'' chuck, 2300 rpm$3,973.86	8266-A23-2	2300	Self Feed Offset Drill	$3,973.86	1	View details
8266-A7-28266-A7-2 \| Self Feed Offset Drill, 3/8'' chuck, 700 rpm$3,876.01	8266-A7-2	700	Self Feed Offset Drill	$3,876.01	1	View details

Recommended Accessories

2 items

Add-on accessories that can be purchased alongside this product.

Product	Model	Free Speed (RPM)	Price	Qty
8258-C5-28258-C5-2 \| Self Feed Twin Drill, 1/4'' chuck, 500 rpm	8258-C5-2	500		1	View details
8258-C8-28258-C8-2 \| Self Feed Twin Drill, 1/4'' chuck, 850 rpm	8258-C8-2	850		1	View details

Overview

Features

Built-in four-way valve enables both manual and remote operation.
Double-acting air piston provides smooth, controlled forward and retract strokes.
Needle valve controls allows adjustment of forward and retract strokes.
Adjustment screw provides infinite stroke length settings.
Ball bearing spindle support offers precision and long service life.
Muffled exhaust for a quieter work environment.

Features & Benefits
Max Free Speed: 17,000 RPM
Max Stroke Length: 3.0"
Thrust: Up to 170 Lbs
Max Free Speed: 17
000 RPM
