E Series Ergonomic Testing Gauges
Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies.
Models Available
9 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Recommended Accessories
12 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Price | Qty | |
|---|---|---|---|---|

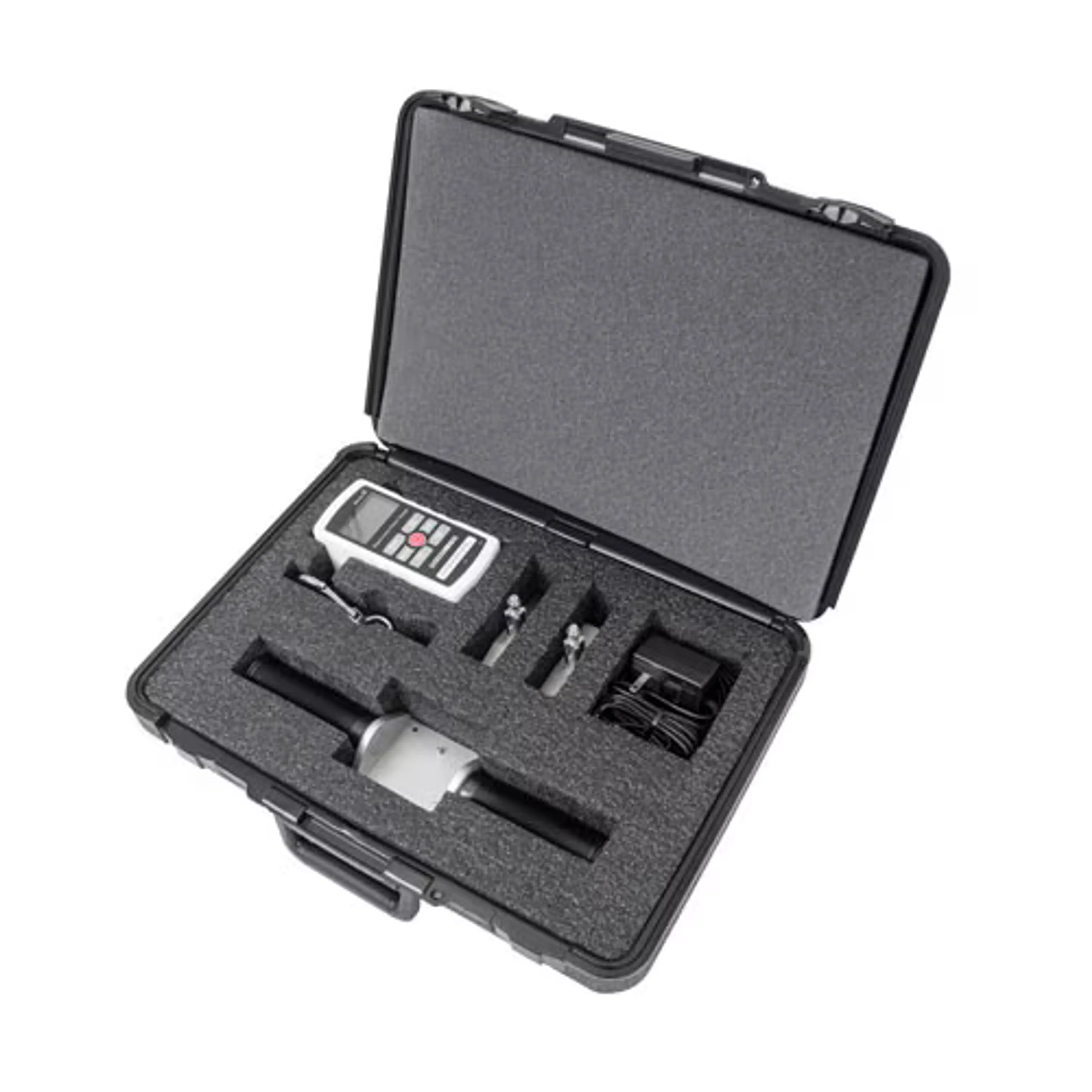

 E1000E1000 | Carrying case, small, Series E$190.00 | E1000 | $190.00 | 1 | View details |
 E1001E1001 | Carrying case, large, Series E$299.25 | E1001 | $299.25 | 1 | View details |

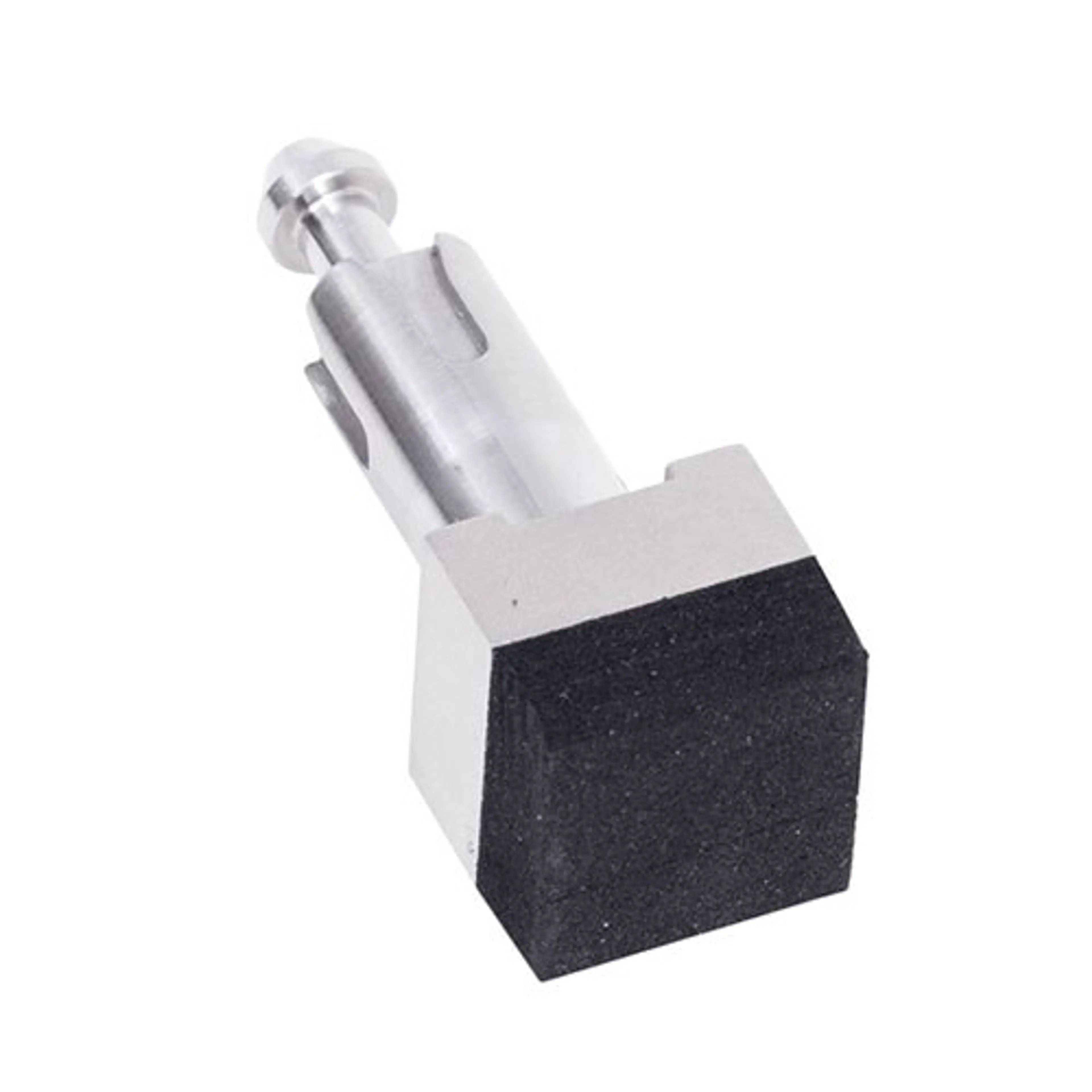

 E1002E1002 | Padded attachment, square, Series E$85.50 | E1002 | $85.50 | 1 | View details |

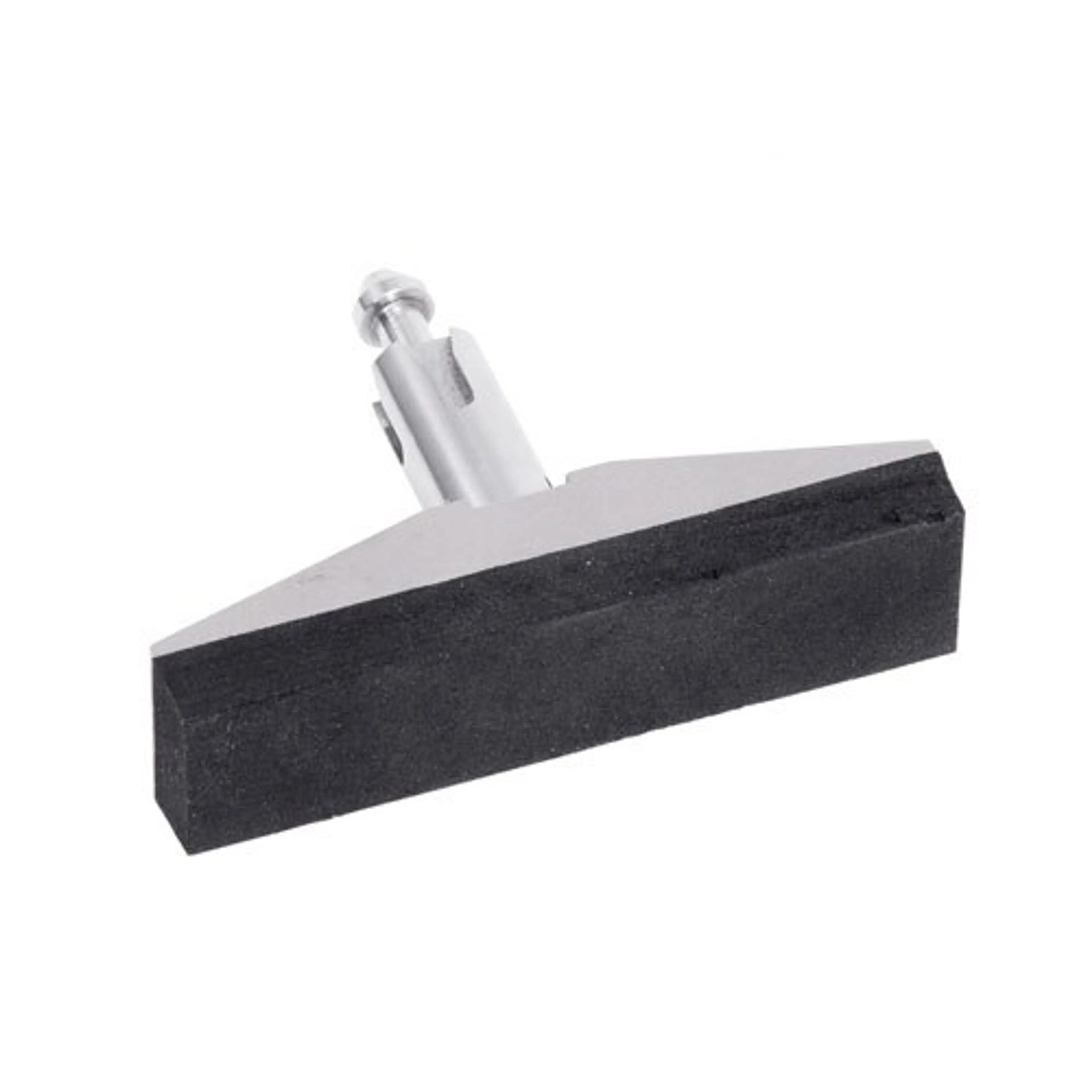

 E1003E1003 | Padded attachment, rectangular, Series E$95.00 | E1003 | $95.00 | 1 | View details |

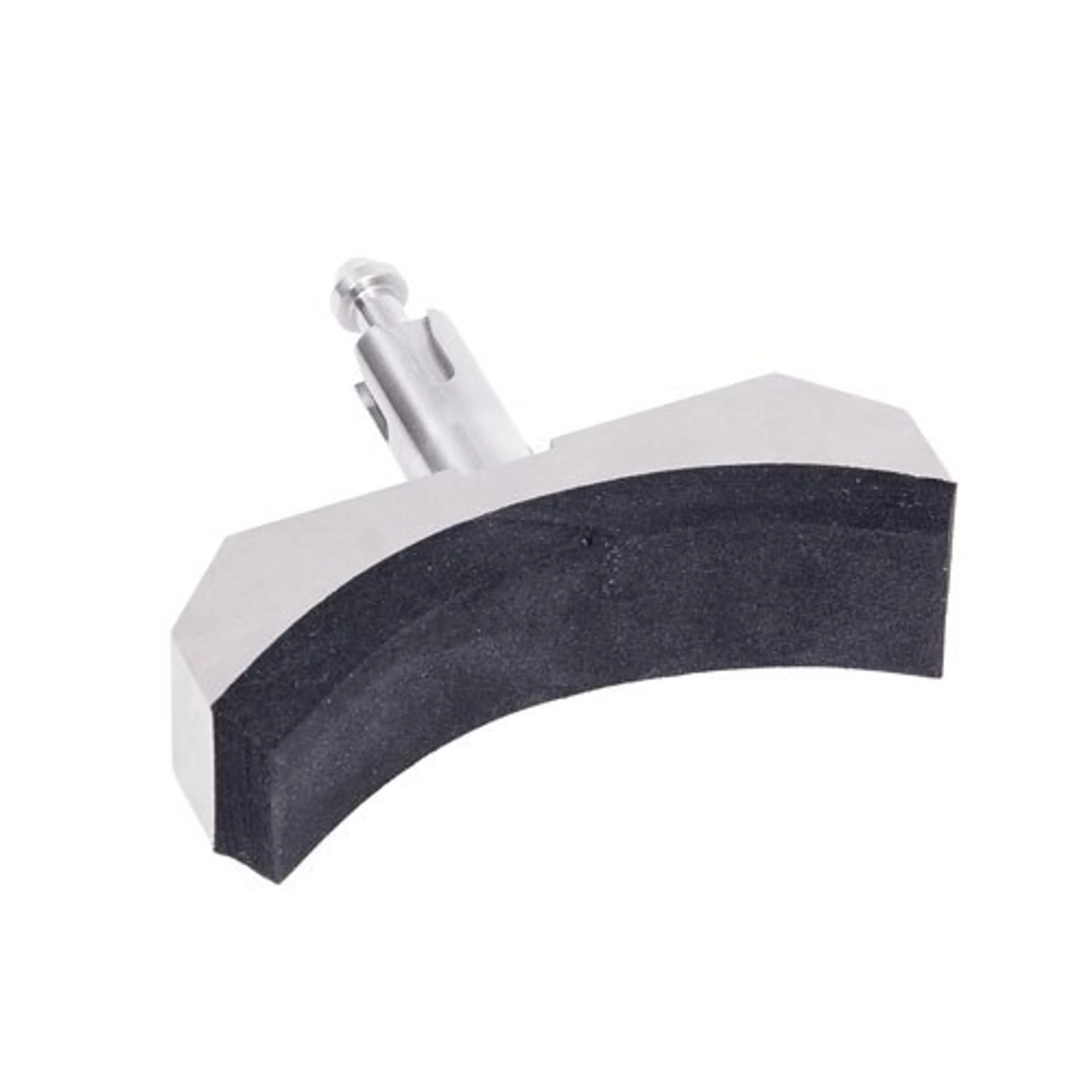

 E1004E1004 | Padded attachment, curved, Series E$109.25 | E1004 | $109.25 | 1 | View details |

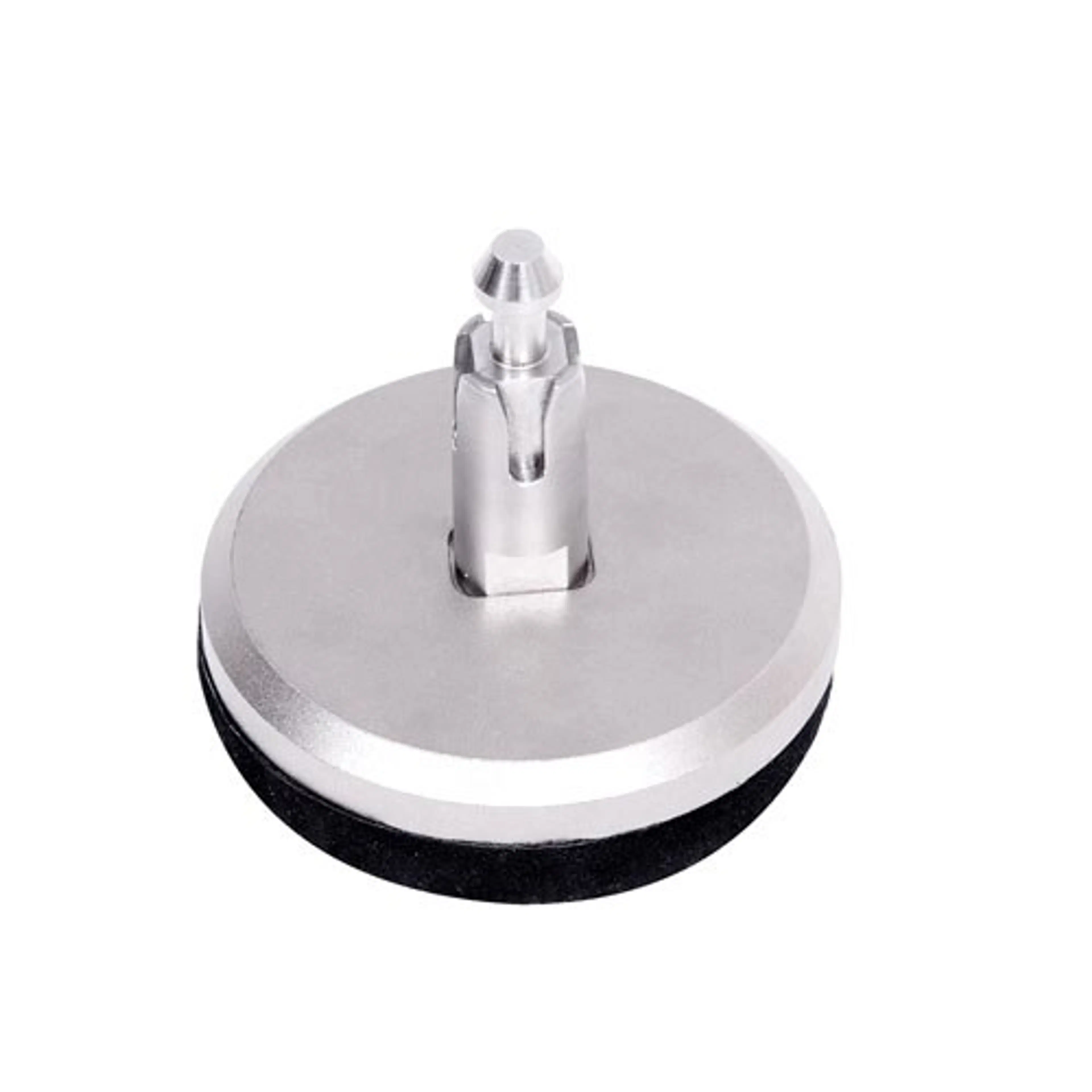

 E1005E1005 | Padded attachment, circular, Series E$133.00 | E1005 | $133.00 | 1 | View details |

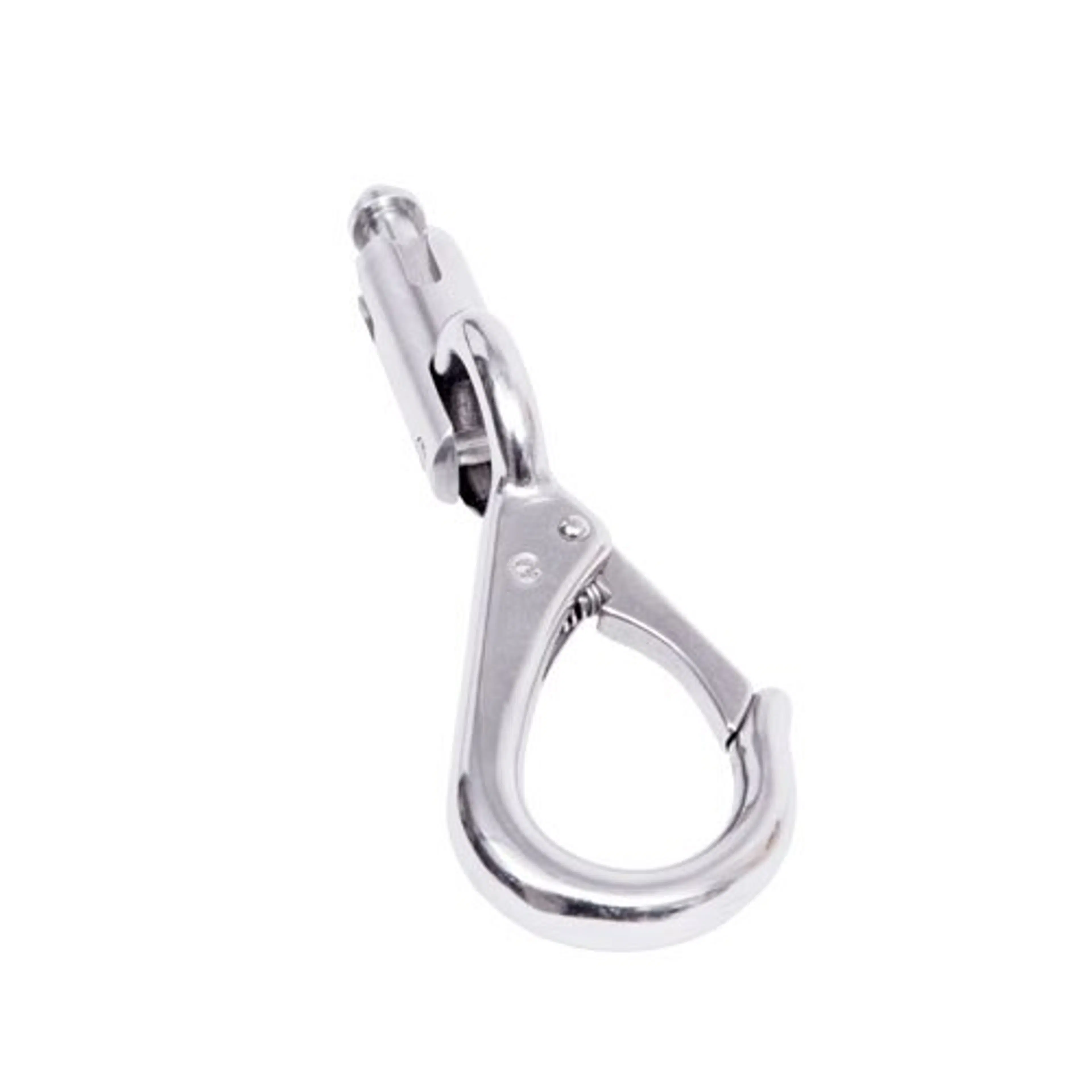

 E1006E1006 | Snap hook, Series E$118.75 | E1006 | $118.75 | 1 | View details |

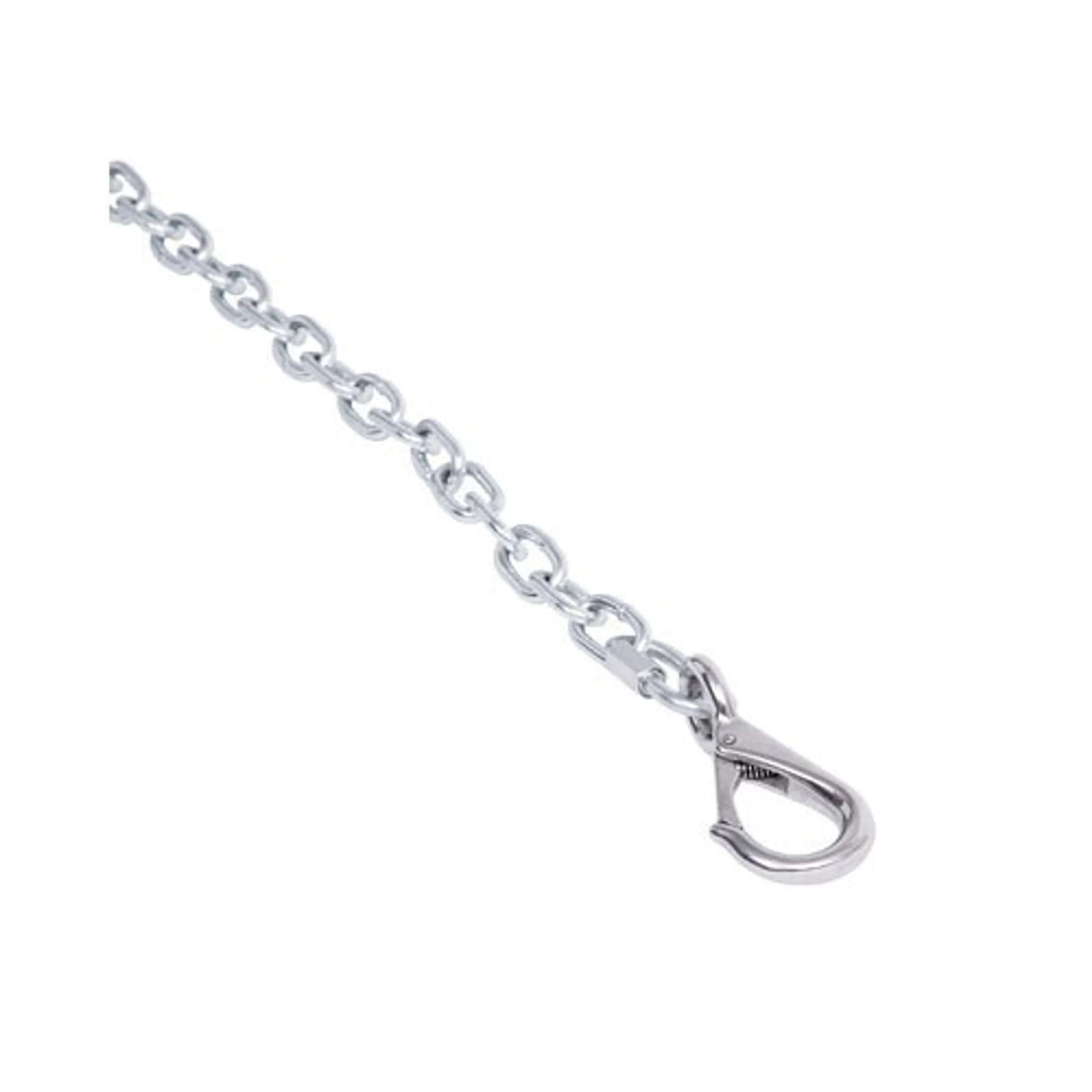

 E1007E1007 | Snap hook / chain assembly, Series E$104.50 | — | $104.50 | 1 | View details |

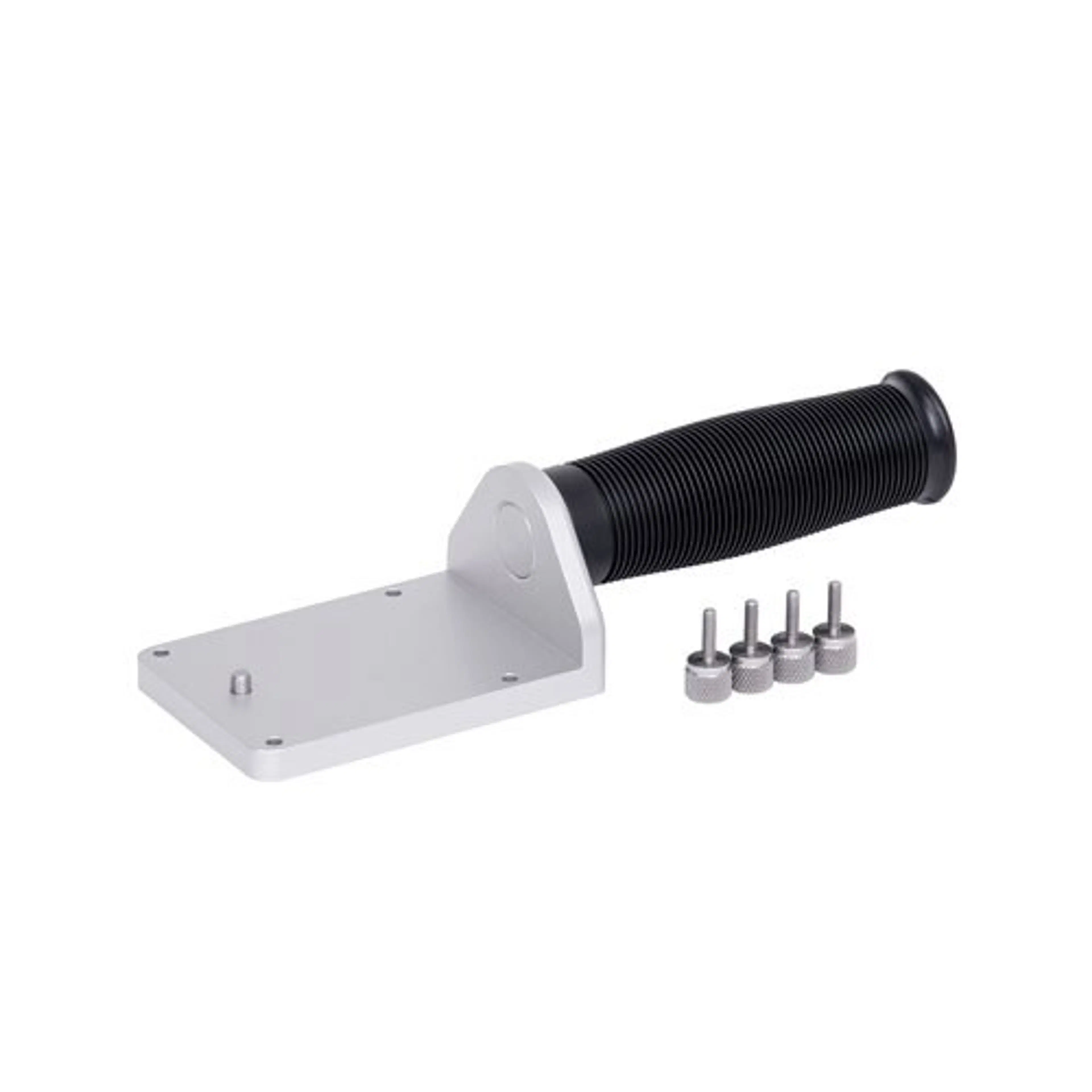

 E1008E1008 | Single handle grip, Series E$109.25 | E1008 | $109.25 | 1 | View details |

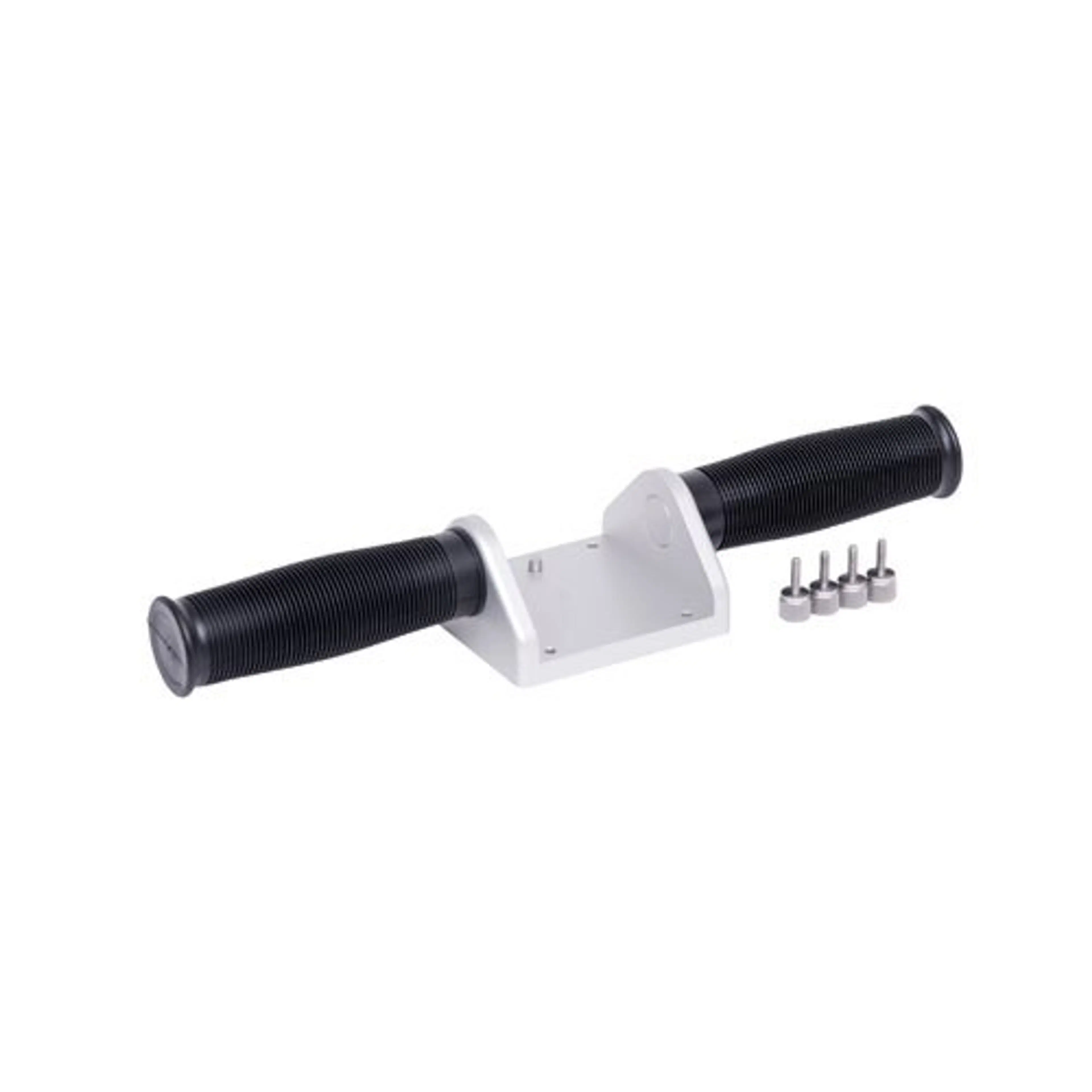

 E1009E1009 | Double handle grip, Series E$161.50 | E1009 | $161.50 | 1 | View details |

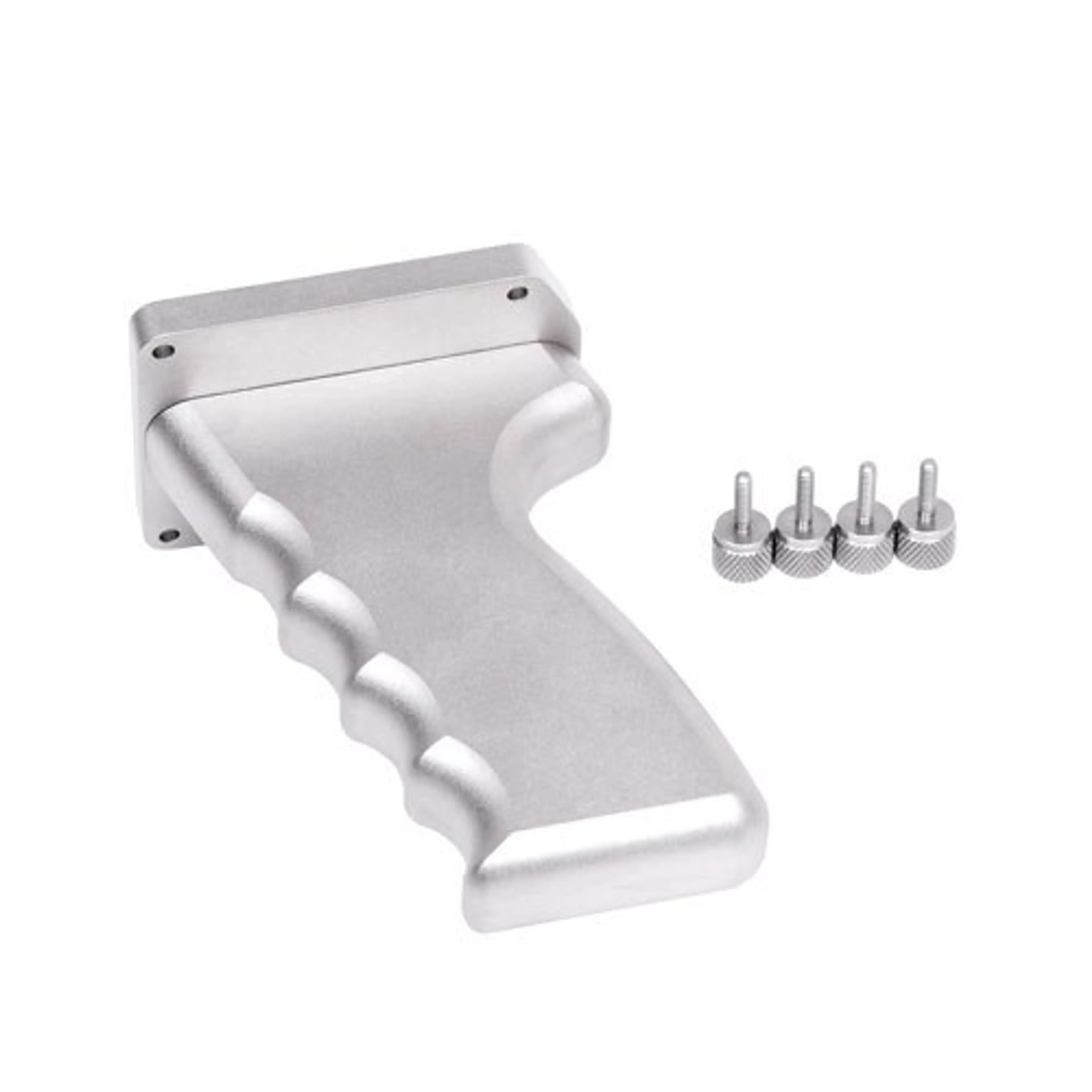

 E1010E1010 | Pistol grip, Series E$270.75 | E1010 | $270.75 | 1 | View details |

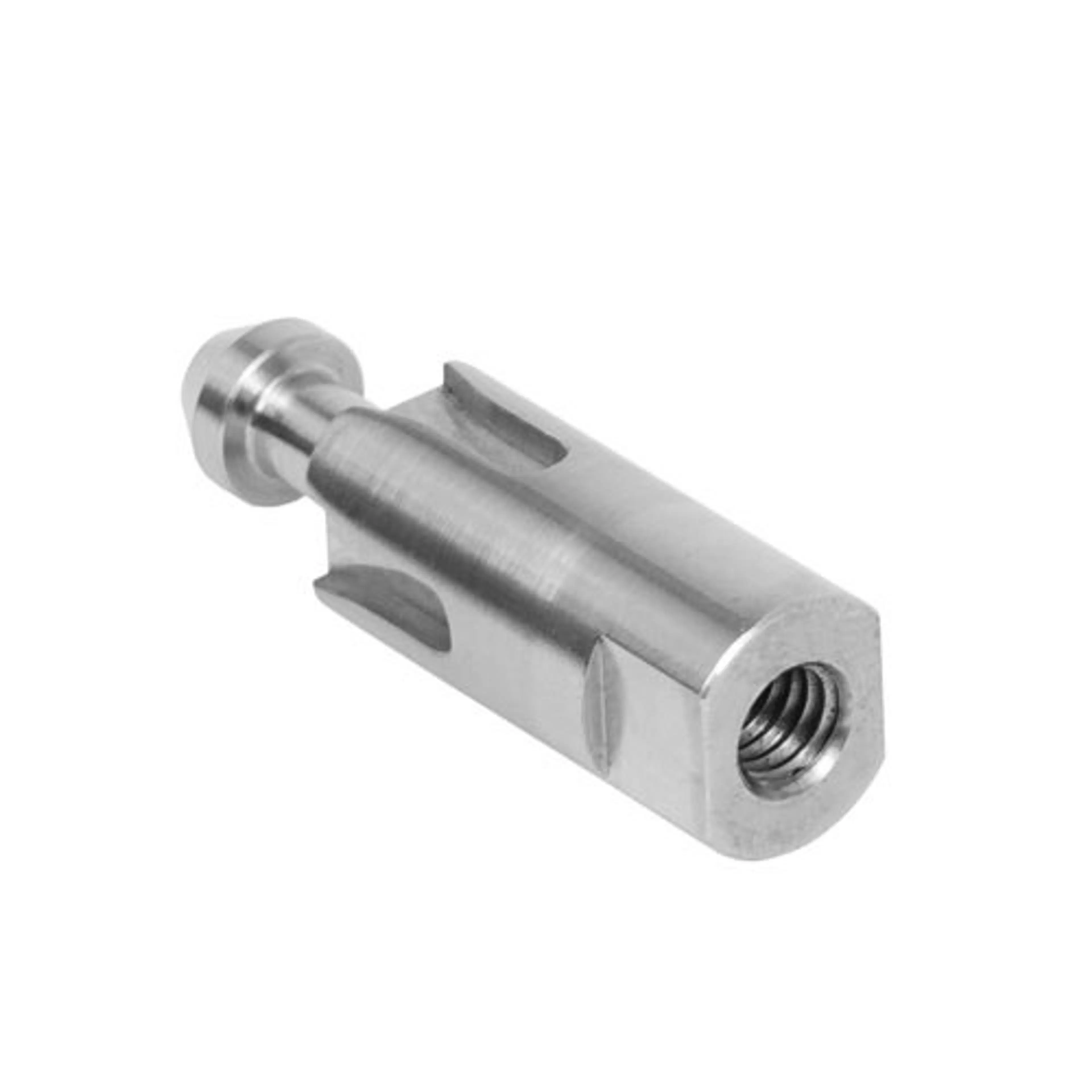

 E1011E1011 | Grip adapter, Series E$52.25 | E1011 | $52.25 | 1 | View details |
Details
Product information
Overview

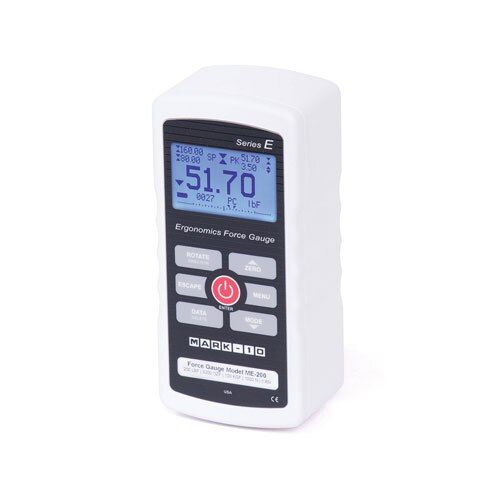

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications.
Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.
Features:
- Measure real time and peak push and pull forces
- Click-Lock™ accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
- Statistical calculations for saved data points
| Features & Benefits | |
|---|---|
| Capacity Range: up to 500 Lbs | |
| Accuracy: ±0.2% of full scale | |
| From $945 |
