AIMCO ALPHA-T47SPD | 53.0 - 114.0 In Lb, Auto Shut-Off
AIMCO
Details

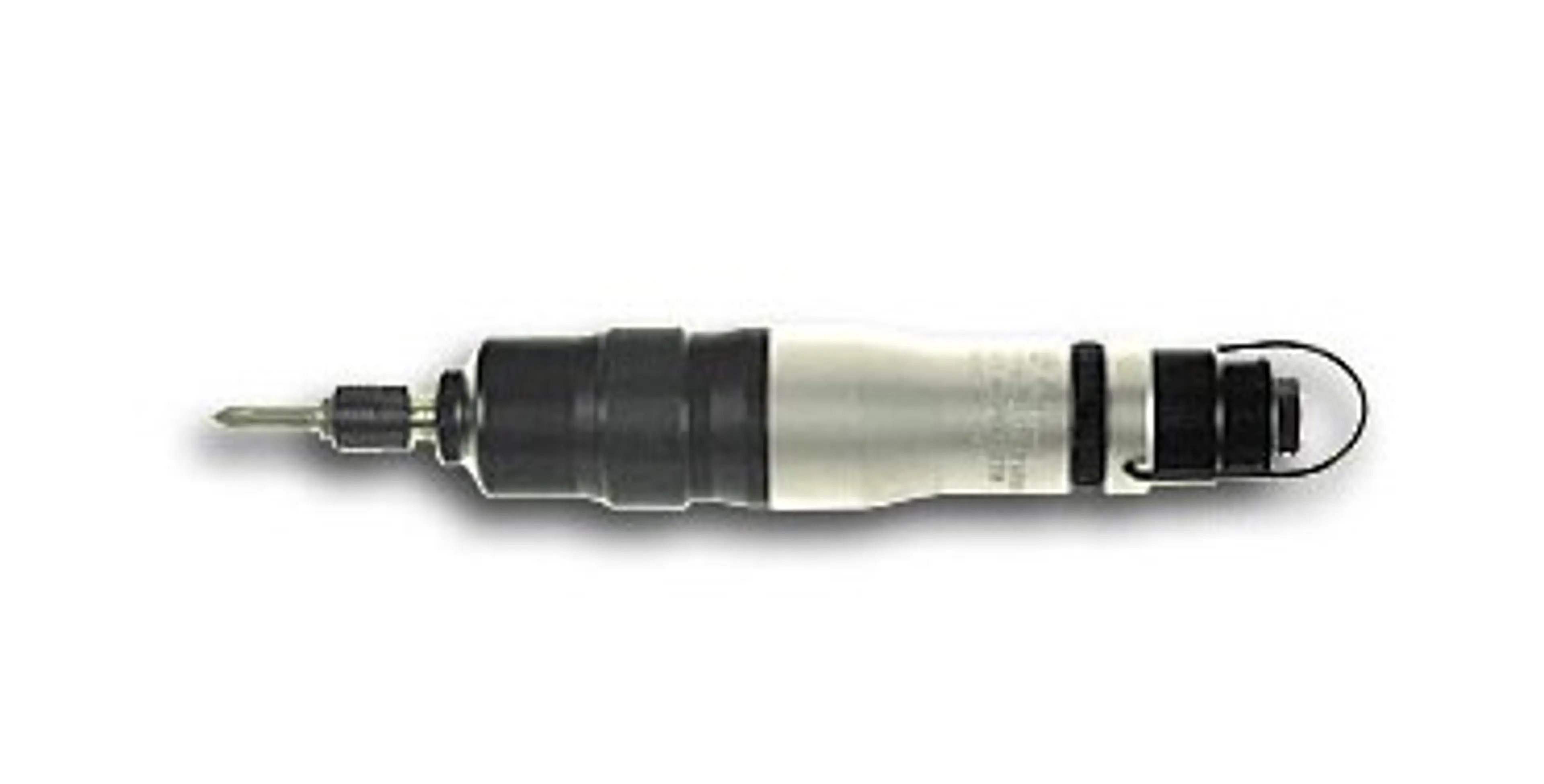

AIMCO URYU ALPHA-T47SPD
53.0 - 114.0 In Lb, Auto Shut-Off
Specifications:
Air Inlet Thread: 1/4 in
Free Speed: 5300 Rpm
Noise Level: 71 dB(A)
Overall Length: 9.5 in
Torque Range: 4.4 - 9.5 Ft-lbs Torque Range: 6.0 - 13.0 Nm
Weight: 1.9 lbs
Drive: 1/4 in
Features:
- Shut off mechanism instantly signals cycle completion to operator
- Extremely accurate on properly designed joints
- Excellent clamp force repeatability
- High speed rundown, reduces fastening time
- Ergonomic benefits reduce fatigue and increase productivity
- Fast rundown reduces operator exposure
- Low vibration and sound levels due to absence of metal-to-metal contact
- Anti-vibration jacket handle provides comfortable operator handling
- Virtually no reaction impulse during and after fastener rundown
- Designed to minimize torque spike on hard joint applications or where tool weight or application access is a concern
- Provides increased power under load with the 9-blade double-chamber motor and patented double-blade pulse mechanism
- Includes 1/4" Hex quick-change chuck
- One hand operation frees the other for productive use
- Quick and easy forward and reverse operation with single-hand reverse lever
- High power to weight ratio
- Exhaust silencer with combined one-piece air inlet bushing
- Quick and easy forward and reverse operation with single-hand reverse lever
- In-line tool style prevents improper wrist extension
- No mechanical clutch or hard part engagement for low maintenance and longer life
- No air line lubrication with oil-free rotor blades
- Built-in torque adjuster matches each application for required torque and fastening time
- Torque adjustment on outside of tool
- Monitoring available for process verification
- No oil film on finished work piece with oil-free rotor blades
- Recommended Air Pressure: 85 psi
