JT9-719110 | JWL-1015VS Lathe
Overview

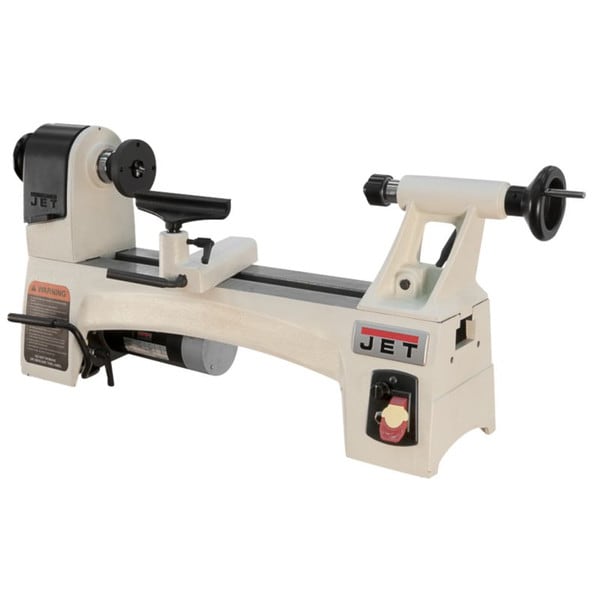

Jet 719110
Jwl-1015Vs Lathe
The new JET 1015 is an ideal choice for the novice woodturner looking for an affordable, user-friendly first lathe, as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop. This sturdy, smooth-running 15” mini-lathe has the power, precision and versatility to turn out any number of projects. When you're ready to make your ideas a reality... Start Here.
Features:- 15-1/2” between centers
- Three speed ranges: 200-1050, 300-1750 and 600-3600
- Integrated 24 position indexing
- Improved tensioning system with easier access to belts
- Wider bed ways provide increased rigidity
- Live center in the tailstock
Technical Specifications
Type
Woodworking Lathe
Swing Over Bed - inches
10
Swing Over Tool Rest Base - inches
7-5/16
Distance Between Centers - inches
15-1/2
Spindle Bore - inches
3/8
Spindle Taper
MT2
Spindle Thread - inches x TPI
1'' /8 TPI
Spindle Speed - rpm
200-3600
Indexing Positions
24
Quill Taper
MT2
Quill Travel - inches
2
Amps
3.2
Rated Power - hp
.5
Motor Phase
1
Voltage
115V
Motor Type
.5hp, 1ph, 115V
Weight - lbs
77
Technical Documents
Jet 719100 Planer Lathe Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
