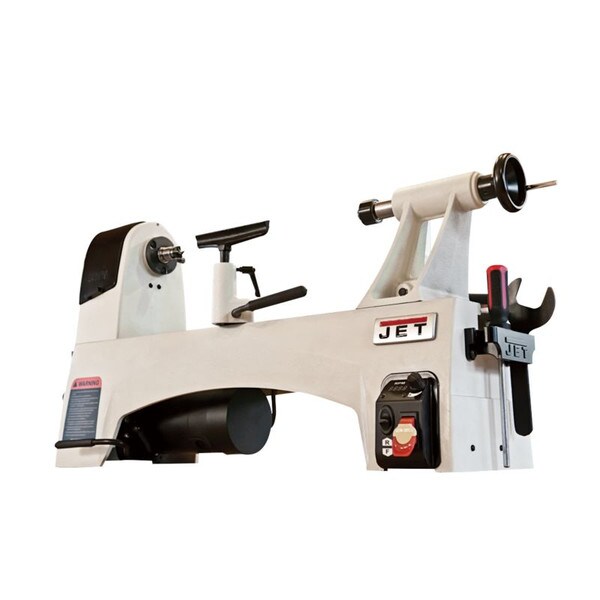

JT9-719200 | JWL-1221VS Wood Lathe
Overview
Jet 719200
Jwl-1221Vs Wood Lathe
The JET 1221VS is different from anything weÂ’ve made before. In truth, itÂ’s different from anything that anybody has ever made before. The design is better. The features are better. The entire turning experience is better. And it all focuses on one conceptÂ… Control.
Features:- Free One Year Online AAW Membership with Purchase
- Unrivaled speed control
- 60-3600 RPM variable speed
- Optimally designed speed ranges
- Forward to reverse is a smooth transition
- Innovative ratchet style belt tension system (patent pending)
- Integrated, spring loaded spindle lock
- Conveniently located controls and DRO
- Acme thread in tailstock
- 24 integrated indexing positions
Technical Specifications
Type
Variable Speed Woodworking Lathe, benchtop
Swing Over Bed - inches
12-1/2
Swing Over Tool Rest Base - inches
9-9/20
Distance Between Centers - inches
20-1/2
Spindle Bore - inches
3/8
Spindle Taper
MT2
Spindle Thread - inches x TPI
1'' /8 TPI
Spindle Speed - rpm
60-3600
Indexing Positions
24
Quill Taper
MT2
Quill Travel - inches
2-1/4
Amps
6
Rated Power - hp
1
Motor Phase
1
Voltage
115V
Motor Type
1hp, 1ph, 115V
Weight - lbs
121
Technical Documents
Jet 719200 Lathe Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
