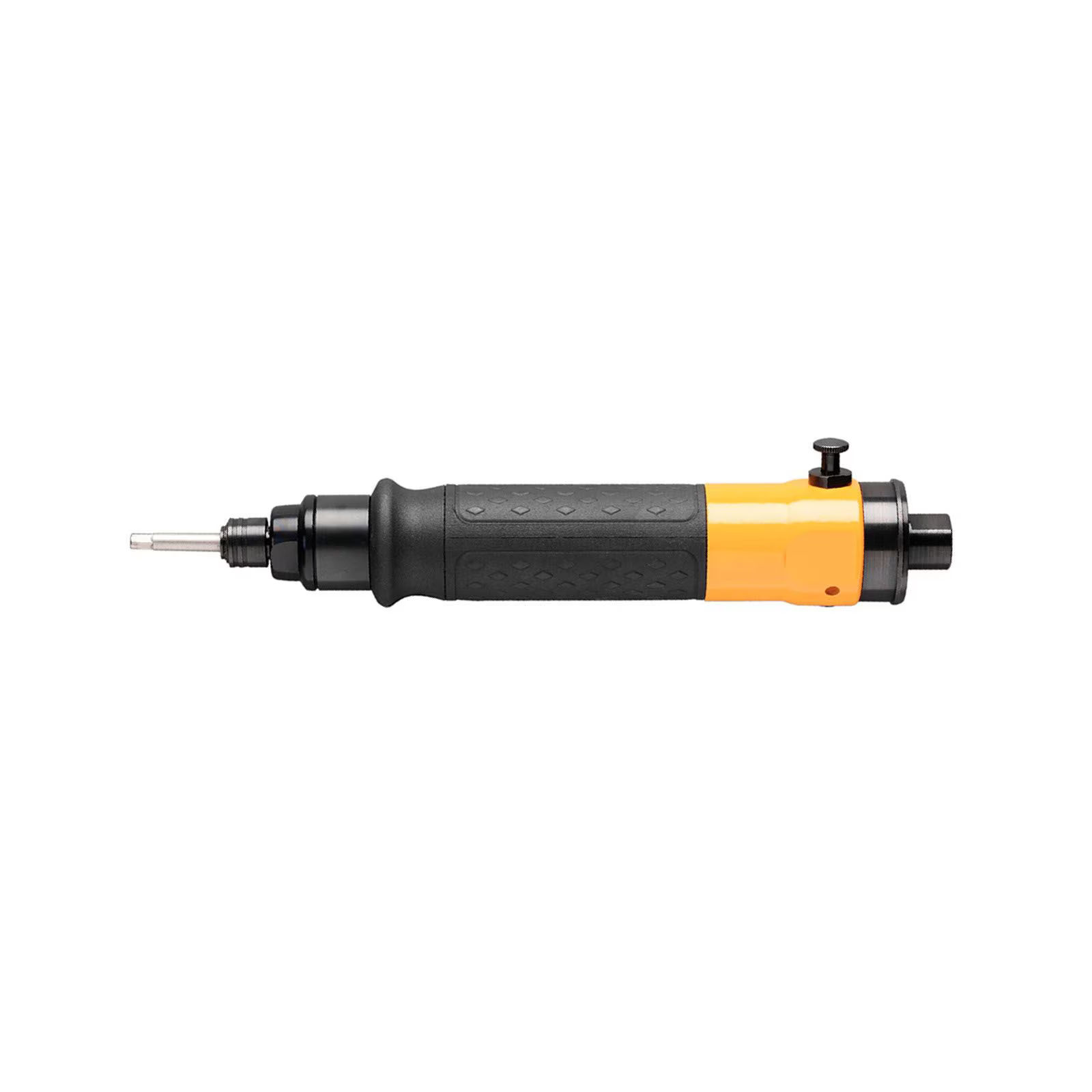

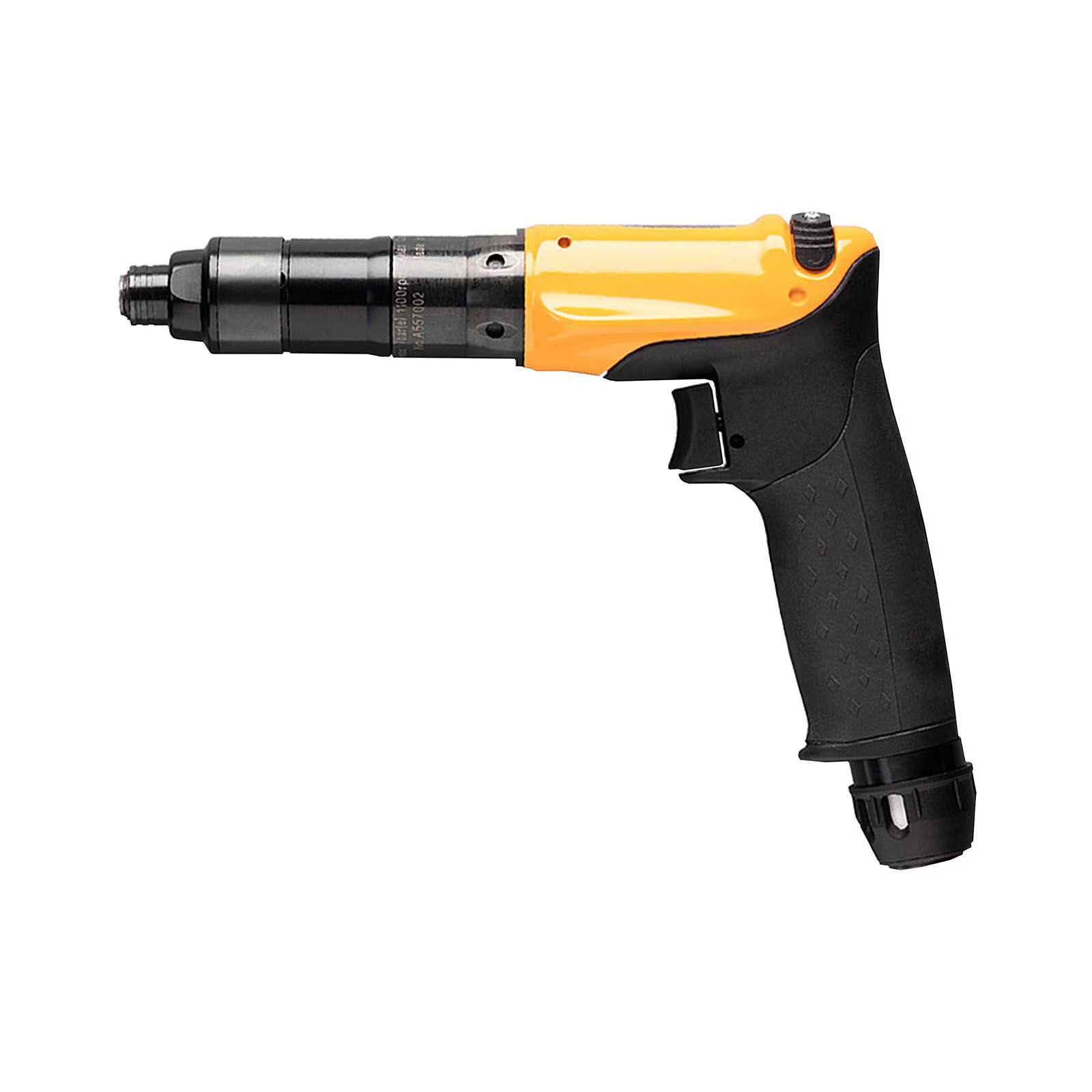

LUM Pneumatic Torque Screwdrivers

Atlas Copco's LUM Screwdrivers are the workhorses of their pneumatic screwdriver line-up. The LUM series combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity.

Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Documents1 file

Models Available

94 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

ProductlengthweightcsdistancePriceQty
LUM02 PR04-18008431 0146 02 | LUM02 PR04-1800 | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.27-2.9 in lb———1View details
LUM02 PR04-12008431 0146 04 | LUM02 PR04-1200 | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.27-2.9 in lb———1View details
LUM10 PR038431 0146 05 | LUM10 PR03 | Inline Pneumatic Screwdriver, 0.1 - 1.5 Nm, 300 rpm, reversible206 mm0.9 lb15 mm1View details
LUM02 PR07-5008431 0146 06 | LUM02 PR07-500 | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.23-5.4 in lb———1View details
LUM02 PR07-3508431 0146 08 | LUM02 PR07-350 | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.23-5.4 in lb———1View details
LUM10 PR058431 0146 09 | LUM10 PR05 | Inline Pneumatic Screwdriver, 0.1 - 1.5 Nm, 460 rpm, reversible206 mm0.9 lb15 mm1View details
LUM02 PR04-1800-Q8431 0146 12 | LUM02 PR04-1800-Q | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.27-2.9 in lb———1View details
LUM02 PR04-1200-Q8431 0146 14 | LUM02 PR04-1200-Q | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.27-2.9 in lb———1View details
LUM02 PR07-500-Q8431 0146 16 | LUM02 PR07-500-Q | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.23-5.4 in lb———1View details
LUM10 PR128431 0146 17 | LUM10 PR12 | Inline Pneumatic Screwdriver, 0.1 - 1.1 Nm, 1200 rpm, reversible196 mm0.9 lb15 mm1View details
LUM02 PR07-350-Q8431 0146 18 | LUM02 PR07-350-Q | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 0.23-5.4 in lb———1View details
LUM10 PR218431 0146 25 | LUM10 PR21 | Inline Pneumatic Screwdriver, 0.1 - 0.7 Nm, 2000 rpm, reversible196 mm0.9 lb15 mm1View details
LUM22 HR38431 0269 00 | LUM22 HR3 | Pneumatic Screwdriver, 0.6 - 3 Nm, 2200 rpm186 mm1.9 lb18 mm1View details
LUM22 HR68431 0269 01 | LUM22 HR6 | Pneumatic Screwdriver, 1.5 - 6.5 Nm, 1150 rpm186 mm1.9 lb18 mm1View details
LUM22 HR48431 0269 02 | LUM22 HR4 | Pneumatic Screwdriver, 0.6 - 4 Nm, 1650 rpm186 mm1.9 lb18 mm1View details
LUM22 HR108431 0269 03 | LUM22 HR10 | Pneumatic Screwdriver, 3.5 - 10 Nm, 750 rpm218 mm2.2 lb18 mm1View details
LUM22 HR128431 0269 04 | LUM22 HR12 | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 500 rpm210 mm2.2 lb18 mm1View details
LUM22 HR12-3708431 0269 05 | LUM22 HR12-370 | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 370 rpm210 mm2.2 lb18 mm1View details
LUM22 HR3-P8431 0269 06 | LUM22 HR3-P | Pneumatic Screwdriver, 0.6 - 3 Nm, 2200 rpm186 mm1.9 lb21 mm1View details
LUM22 HR6-P8431 0269 07 | LUM22 HR6-P | Pneumatic Screwdriver, 1.5 - 6.5 Nm, 1150 rpm186 mm1.9 lb21 mm1View details
LUM22 HR4-P8431 0269 08 | LUM22 HR4-P | Pneumatic Screwdriver, 0.6 - 4 Nm, 1650 rpm186 mm1.9 lb21 mm1View details
LUM22 HR10-P8431 0269 09 | LUM22 HR10-P | Pneumatic Screwdriver, 3.5 - 10 Nm, 750 rpm218 mm2.2 lb21 mm1View details
LUM22 HR12-P8431 0269 10 | LUM22 HR12-P | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 500 rpm210 mm2.2 lb21 mm1View details
LUM22 HR12-370-P8431 0269 11 | LUM22 HR12-370-P | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 370 rpm210 mm2.2 lb21 mm1View details
LUM22 HRX48431 0269 20 | LUM22 HRX4 | Pneumatic Screwdriver, 0.6 - 4 Nm, 1650 rpm187 mm2 lb18 mm1View details
LUM22 HRX68431 0269 21 | LUM22 HRX6 | Pneumatic Screwdriver, 1.5 - 6.5 Nm, 1100 rpm197 mm2.1 lb18 mm1View details
LUM22 HRX108431 0269 23 | LUM22 HRX10 | Pneumatic Screwdriver, 3.5 - 10 Nm, 800 rpm219 mm2.4 lb18 mm1View details
LUM22 HRX128431 0269 24 | LUM22 HRX12 | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 500 rpm211 mm2.4 lb18 mm1View details
LUM22 HRX12-3708431 0269 25 | LUM22 HRX12-370 | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 370 rpm211 mm2.4 lb18 mm1View details
LUM22 HRX28431 0269 29 | LUM22 HRX2 | Pneumatic Screwdriver, 1.2 - 2 Nm, 4500 rpm187 mm2 lb18 mm1View details
LUM22 HRX268431 0269 39 | LUM22 HRX26 | Pneumatic Screwdriver, 3 - 26 Nm, 220 rpm233 mm2.6 lb18 mm1View details
LUM22 SR38431 0269 44 | LUM22 SR3 | Inline Pneumatic Screwdriver, 0.6 - 3.2 Nm, 1950 rpm, reversible239 mm1.8 lb20 mm1View details
LUM22 SR48431 0269 46 | LUM22 SR4 | Inline Pneumatic Screwdriver, 0.6 - 4 Nm, 1500 rpm, reversible239 mm1.8 lb20 mm1View details
LUM22 SR68431 0269 47 | LUM22 SR6 | Inline Pneumatic Screwdriver, 1.5 - 6 Nm, 1000 rpm, reversible239 mm1.9 lb20 mm1View details
LUM22 SR128431 0269 48 | LUM22 SR12 | Inline Pneumatic Screwdriver, 3.5 - 12.5 Nm, 430 rpm, reversible252 mm2.1 lb22 mm1View details
LUM22 SR108431 0269 49 | LUM22 SR10 | Inline Pneumatic Screwdriver, 3.5 - 10 Nm, 700 rpm, reversible260 mm2.2 lb22 mm1View details
LUM22 SR12-3008431 0269 50 | LUM22 SR12-300 | Inline Pneumatic Screwdriver, 3.5 - 12.5 Nm, 300 rpm, reversible252 mm2.2 lb22 mm1View details
LUM22 SR5-3008431 0269 51 | LUM22 SR5-300 | Inline Pneumatic Screwdriver, 0.4 - 5 Nm, 300 rpm, reversible239 mm1.8 lb20 mm1View details
LUM22 PR48431 0269 55 | LUM22 PR4 | Inline Pneumatic Screwdriver, 0.5 - 4 Nm, 1600 rpm, reversible211 mm1.7 lb20 mm1View details
LUM22 PR108431 0269 58 | LUM22 PR10 | Inline Pneumatic Screwdriver, 3.5 - 10 Nm, 700 rpm, reversible232 mm2.1 lb22 mm1View details
LUM22 PR5-3508431 0269 60 | LUM22 PR5-350 | Inline Pneumatic Screwdriver, 0.4 - 5 Nm, 350 rpm, reversible211 mm1.7 lb20 mm1View details
LUM22 PR38431 0269 61 | LUM22 PR3 | Inline Pneumatic Screwdriver, 0.6 - 3.2 Nm, 2100 rpm, reversible211 mm1.7 lb20 mm1View details
LUM22 PR5-2608431 0269 62 | LUM22 PR5-260 | Inline Pneumatic Screwdriver, 0.4 - 5 Nm, 260 rpm, reversible211 mm1.7 lb20 mm1View details
LUM32 HR108431 0269 90 | LUM32 HR10 | Pneumatic Screwdriver, 5 - 10 Nm, 750 rpm183 mm1.6 lb185 mm1View details
LUM32 HR158431 0269 91 | LUM32 HR15 | Pneumatic Screwdriver, 7.5 - 15.5 Nm, 450 rpm183 mm1.6 lb18 mm1View details
LUM22 HRX3.58431 0269 99 | LUM22 HRX3.5 | Pneumatic Screwdriver, 0.6 - 3.5 Nm, 2250 rpm187 mm2 lb18 mm1View details
LUM12 PR48431 0278 25 | LUM12 PR4 | Inline Pneumatic Screwdriver, 0.4 - 4.2 Nm, 750 rpm, reversible195 mm1.2 lb17 mm1View details
LUM12 PR38431 0278 26 | LUM12 PR3 | Inline Pneumatic Screwdriver, 0.4 - 3.2 Nm, 1000 rpm, reversible195 mm1.2 lb17 mm1View details
LUM12 PR28431 0278 27 | LUM12 PR2 | Inline Pneumatic Screwdriver, 0.4 - 2.3 Nm, 1450 rpm, reversible195 mm1.2 lb17 mm1View details
LUM12 PR18431 0278 29 | LUM12 PR1 | Inline Pneumatic Screwdriver, 0.6 - 1.6 Nm, 1900 rpm, reversible195 mm1.2 lb17 mm1View details
LUM12 PR58431 0278 30 | LUM12 PR5 | Inline Pneumatic Screwdriver, 0.4 - 5 Nm, 450 rpm, reversible195 mm1.2 lb20 mm1View details
LUM12 SR48431 0278 32 | LUM12 SR4 | Inline Pneumatic Screwdriver, 0.4 - 4.5 Nm, 850 rpm, reversible217 mm1.3 lb17 mm1View details
LUM12 SR38431 0278 33 | LUM12 SR3 | Inline Pneumatic Screwdriver, 0.4 - 3.5 Nm, 1200 rpm, reversible217 mm1.3 lb17 mm1View details
LUM12 SR28431 0278 34 | LUM12 SR2 | Inline Pneumatic Screwdriver, 0.5 - 2.5 Nm, 1700 rpm, reversible217 mm1.3 lb17 mm1View details
LUM12 SR18431 0278 35 | LUM12 SR1 | Inline Pneumatic Screwdriver, 0.6 - 1.8 Nm, 2200 rpm, reversible217 mm1.3 lb17 mm1View details
LUM12 HRX5-1708431 0278 47 | LUM12 HRX5-190 | Pnuematic Screwdriver w/ Trigger Start, 3.5 - 44.2 in lb196 mm1.5 lb16 mm1View details
LUM12 HRX5-3508431 0278 48 | LUM12 HRX5-350 | Pneumatic Screwdriver, 0.4 - 5 Nm, 350 rpm186 mm1.5 lb16 mm1View details
LUM12 HRX5-350-RE8431 0278 49 | LUM12 HRX5-350-RE | Pneumatic Screwdriver, 0.4 - 5 Nm, 350 rpm186 mm1.5 lb16 mm1View details
LUM12 HRX58431 0278 51 | LUM12 HRX5 | Pneumatic Screwdriver, 0.4 - 5 Nm, 850 rpm186 mm1.5 lb16 mm1View details
LUM12 HRX5-RE8431 0278 53 | LUM12 HRX5-RE | Pneumatic Screwdriver, 0.4 - 5 Nm, 850 rpm186 mm1.5 lb16 mm1View details
LUM12 HRX38431 0278 54 | LUM12 HRX3 | Pneumatic Screwdriver, 0.4 - 3.5 Nm, 1150 rpm186 mm1.5 lb16 mm1View details
LUM12 HRX3-RE8431 0278 55 | LUM12 HRX3-RE | Pneumatic Screwdriver, 0.4 - 3.5 Nm, 1150 rpm186 mm1.5 lb16 mm1View details
LUM12 HRX28431 0278 56 | LUM12 HRX2 | Pneumatic Screwdriver, 0.6 - 2.5 Nm, 1650 rpm176 mm1.4 lb16 mm1View details
LUM12 HRX2-RE8431 0278 57 | LUM12 HRX2-RE | Pnuematic Screwdriver w/ Trigger Start, 5.3 - 22.1 in lb———1View details
LUM12 HRX18431 0278 58 | LUM12 HRX1 | Pneumatic Screwdriver, 0.6 - 1.8 Nm, 2300 rpm176 mm1.4 lb15 mm1View details
LUM12 HRX1-RE8431 0278 59 | LUM12 HRX1-RE | Pnuematic Screwdriver w/ Trigger Start, 5.3 - 15.9 in lb———1View details
LUM12 HRX88431 0278 60 | LUM12 HRX8 | Pneumatic Screwdriver, 1.5 - 8 Nm, 500 rpm186 mm1.5 lb16 mm1View details
LUM12 HRX8-RE8431 0278 61 | LUM12 HRX8-RE | Pneumatic Screwdriver, 1.5 - 8 Nm, 500 rpm186 mm1.5 lb16 mm1View details
LUM22 HR3-RE8431 0278 63 | LUM22 HR3-RE | Pnuematic Screwdriver w/ Trigger Start, 5.3 - 26.5 in lb———1View details
LUM22 HR6-RE8431 0278 64 | LUM22 HR6-RE | Pneumatic Screwdriver, 1.5 - 6.5 Nm, 1150 rpm186 mm1.9 lb18 mm1View details
LUM22 HR4-RE8431 0278 65 | LUM22 HR4-RE | Pneumatic Screwdriver, 0.6 - 4 Nm, 1650 rpm186 mm1.9 lb18 mm1View details
LUM22 HR10-RE8431 0278 66 | LUM22 HR10-RE | Pneumatic Screwdriver, 3.5 - 10 Nm, 750 rpm218 mm2.2 lb18 mm1View details
LUM22 HR12-RE8431 0278 67 | LUM22 HR12-RE | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 500 rpm210 mm2.2 lb18 mm1View details
LUM12 HRX8-2508431 0278 69 | LUM12 HRX8-250 | Pneumatic Screwdriver, 1.5 - 8 Nm, 250 rpm186 mm1.5 lb16 mm1View details
LUM22 HRX3-RE8431 0278 70 | LUM22 HRX3-RE | Pnuematic Screwdriver w/ Trigger Start, 5.3 - 26.5 in lb———1View details
LUM22 HRX6-RE8431 0278 71 | LUM22 HRX6-RE | Pneumatic Screwdriver, 1.5 - 6.5 Nm, 1100 rpm197 mm2.1 lb18 mm1View details
LUM22 HRX10-RE8431 0278 73 | LUM22 HRX10-RE | Pneumatic Screwdriver, 3.5 - 10 Nm, 800 rpm219 mm2.4 lb18 mm1View details
LUM22 HRX12-RE8431 0278 74 | LUM22 HRX12-RE | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 500 rpm211 mm2.4 lb18 mm1View details
LUM22 HRX12-370-RE8431 0278 75 | LUM22 HRX12-370-RE | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 370 rpm211 mm2.4 lb18 mm1View details
LUM22 PR12-8508431 0278 80 | LUM22 PR12-850 | Inline Pneumatic Screwdriver, 3.5 - 12 Nm, 850 rpm, reversible246 mm2.2 lb22 mm1View details
LUM22 PR4-23008431 0278 81 | LUM22 PR4-2300 | Inline Pneumatic Screwdriver, 0.7 - 4.5 Nm, 2300 rpm, reversible211 mm1.7 lb20 mm1View details
LUM22 HRX2-32008431 0278 85 | LUM22 HRX2-3200 | Pneumatic Screwdriver, 1.1 - 2.6 Nm, 3200 rpm187 mm2 lb18 mm1View details
LUM22 PR2-35008431 0278 89 | LUM22 PR2-3500 | Inline Pneumatic Screwdriver, 1.1 - 2.5 Nm, 3500 rpm, reversible211 mm1.7 lb20 mm1View details
LUM12 HRX1-508431 0279 58 | LUM12 HRX1-50 | Pnuematic Screwdriver w/ Trigger Start, 5.3 - 15.9 in lb———1View details
LUM12 HRX1-1108431 0279 60 | LUM12 HRX1-110 | Pnuematic Screwdriver w/ Trigger Start, 5.3 - 15.9 in lb———1View details
LUM12 HRX1-SS8431 0280 01 | LUM12 HRX1-SS | LUM 12 HRX1-SS———1View details
LUM10 HRX1-SS8431 0280 02 | LUM10 HRX1-SS | Balanced Grip Screwdriver w/ Trigger + Start to Stop Start, 1.8-5.3 in lb———1View details
LUM12 PR1-SS8431 0280 05 | LUM12 PR1-SS | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 5.3-11.5 in lb———1View details
LUM10 PR1-SS8431 0280 06 | LUM10 PR1-SS | Inline Pnuematic Screwdriver w/ Push to Start Trigger, 1.8-5.3 in lb———1View details
LUM12 PR3-SS8431 0280 07 | LUM12 PR3-SS | 8.8 - 15.9 In Lb Inline Air Screwdriver———1View details
LUM12 HRX8-508431 0280 25 | LUM12 HRX8-50 | Balanced Grip Pnuematic Screwdriver w/ Trigger Start, 13.3-70.8 in lb196 mm1.5 lb16 mm1View details
LUM22 HRX12-508431 0280 26 | LUM22 HRX12-50 | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 50 rpm229 mm2.5 lb18 mm1View details
LUM12 HRX8-1108431 0280 27 | LUM12 HRX8-110 | Pneumatic Screwdriver, 1.5 - 8 Nm, 110 rpm196 mm1.5 lb16 mm1View details
LUM22 HRX11-2208431 0282 20 | LUM22 HRX11-220 | Pneumatic Screwdriver, 3.5 - 12.5 Nm, 220 rpm229 mm2.5 lb18 mm1View details

Recommended Accessories

2 items

Add-on accessories that can be purchased alongside this product.

ProductPriceQty
LUM22 HRX38431 0269 22 | LUM22 HRX3 | Pneumatic Screwdriver, 0.6 - 3 Nm, 2250 rpm1View details
NIST CERTNIST Certificate$150.00$150.001View details

Details

Product information

Overview

LUM models have a fast and accurate shut-off clutch for smooth performance and high quality tightening.
They are suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. Electro Static Discharge (ESD) approved models and RE models are available in this range. RE models enable a signal to be received from the tool, in order to control batch count. All RE models need to be combined with an external RE control system. Shut-off tools are the best choice for machine screws, thread-rolling screws and thread-forming screws for plastic.
  • Designed with ergonomics in mind.
  • Supplies the accuracy demand for each application.
  • Certified for torque accuracy throughout its entire service life.
  • Easy to service and is supplied with comprehensive documentation.
  • Built to last in industrial environments.
  • Based on many years of experience in tool design.
  • Backed by a technical support organization unequaled in the industry.
*RE reporting models are available, designated with suffix –RE. Soft stop options are available, designated with the suffix "SS".
*Front end 12.5 mm (4210 3918 01) included.
*Optional front end 21 mm (4210 3918 02).
*Air inlet thread M5. Nipple and coupling included accessory for all LUM 02 models, hose size diameter 6 mm.
*ESD approved: LUM10/12/22 SR/PR
*All mod els: Are reversible and have quick change chuck.
*SR-models have ring reverse control.
*PR-models have push button reverse.
Features & Benefits
Great durability and productivity
Increased performance
Compact size for use in limited spaces
Superior ergonomics
Fast shut-off clutch Lubrication free
Reversible
Quick change chuck
RE reporting models
Inline models vailable in push-to-start or lever start
