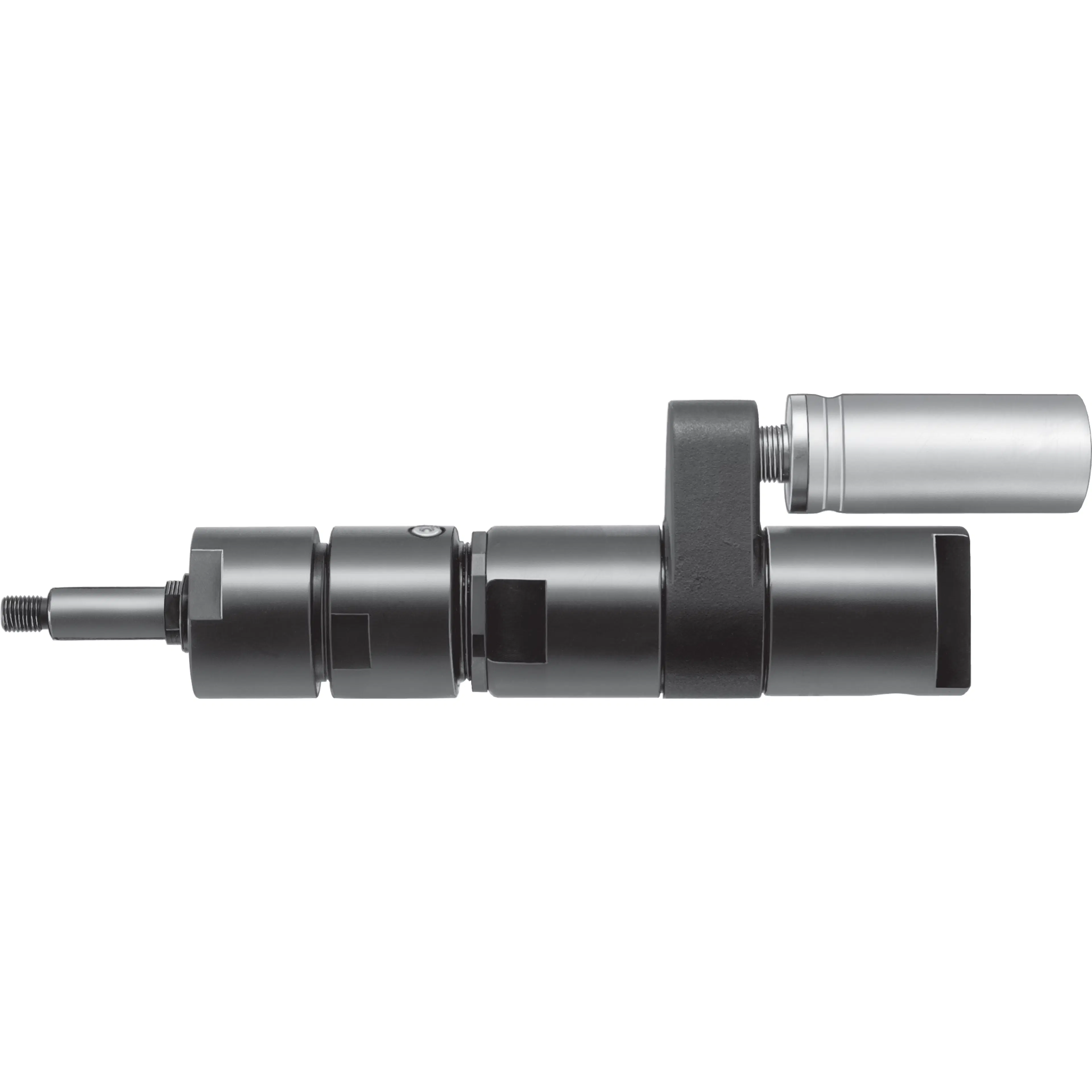

Ingersoll Rand 2200 Series Power Motors image 1

Click the image to zoom

2200 Series Power Motors

2200 Series, In-Line planetary gear, Multi-vane Air Motors. Milling motor versions ideal for applications with high side loading such as milling, cutting and de-burring.

Models and pricing below

Models Available

63 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Max Torque (in-lb)	Max Torque (ft-lb)	Drive Size	Price	Qty
7800-1B7800-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall$1,775.81	12	1	1/2"	$1,775.81	1	View details
7800-2B7800-2B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall$2,267.81	12	1	3/8"	$2,267.81	1	View details
7800-4B7800-4B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall$2,298.56	12	1	3/8"	$2,298.56	1	View details
7800-B7800-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall$1,791.19	12	1	1/2"	$1,791.19	1	View details
7801-1B7801-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 5.5 Nm stall$1,890.68	49	4.1	1/2"	$1,890.68	1	View details
7801-2B7801-2B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 5.5 Nm stall$2,298.56	49	4.1	3/8"	$2,298.56	1	View details
7801-3B7801-3B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 5.5 Nm stall$2,275.50	49	4.1	5/8"	$2,275.50	1	View details
7801-4B7801-4B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 5.5 Nm stall$2,329.31	49	4.1	3/8"	$2,329.31	1	View details
7801-B7801-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 5.5 Nm stall$1,915.44	49	4.1	1/2"	$1,915.44	1	View details
7802-1B7802-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 10.3 Nm stall$1,915.44	91	7.6	1/2"	$1,915.44	1	View details
7802-2B7802-2B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 10.3 Nm stall$2,267.81	91	7.6	3/8"	$2,267.81	1	View details
7802-4B7802-4B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 10.3 Nm stall$2,283.19	91	7.6	3/8"	$2,283.19	1	View details
7802-B7802-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 10.3 Nm stall$1,806.56	91	7.6	1/2"	$1,806.56	1	View details
7803-1B7803-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall$2,136.68	194	16	1/2"	$2,136.68	1	View details
7803-2B7803-2B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall$2,701.27	194	16	3/8"	$2,701.27	1	View details
7803-3B7803-3B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall$2,506.13	194	16	5/8"	$2,506.13	1	View details
7803-4B7803-4B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall$2,679.93	194	16	3/8"	$2,679.93	1	View details
7803-B7803-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall$2,111.90	194	16	1/2"	$2,111.90	1	View details
7804-1B7804-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 41.2 Nm stall$1,983.38	365	30	1/2"	$1,983.38	1	View details
7804-2B7804-2B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 41.2 Nm stall$2,521.50	365	30	3/8"	$2,521.50	1	View details
7804-3B7804-3B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 41.2 Nm stall$2,701.27	365	30	5/8"	$2,701.27	1	View details
7804-B7804-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 41.2 Nm stall$1,983.38	365	30	1/2"	$1,983.38	1	View details
7805-1B7805-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 75.5 Nm stall$2,044.88	668	56	1/2"	$2,044.88	1	View details
7805-3B7805-3B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 75.5 Nm stall$2,498.44	668	56	5/8"	$2,498.44	1	View details
7805-4B7805-4B \| Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 75.5 Nm stall$2,652.59	668	56	3/8"	$2,652.59	1	View details
7805-B7805-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 75.5 Nm stall$1,998.75	668	56	1/2"	$1,998.75	1	View details
7806-1B7806-1B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 1.4 Nm stall, reversible$2,063.22	12	1	1/2"	$2,063.22	1	View details
7806-B7806-B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 1.4 Nm stall, reversible$1,960.31	12	1	1/2"	$1,960.31	1	View details
7807-1B7807-1B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 5.5 Nm stall, reversible$2,063.22	49	4.1	1/2"	$2,063.22	1	View details
7807-B7807-B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 5.5 Nm stall, reversible$1,944.94	49	4.1	1/2"	$1,944.94	1	View details
7808-1B7808-1B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 10.2 Nm stall, reversible$2,087.13	90	7.5	1/2"	$2,087.13	1	View details
7808-B7808-B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 10.2 Nm stall, reversible$2,063.22	90	7.5	1/2"	$2,063.22	1	View details
7809-1B7809-1B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 21.3 Nm stall, reversible$2,308.36	189	16	1/2"	$2,308.36	1	View details
7809-B7809-B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 21.3 Nm stall, reversible$2,167.88	189	16	1/2"	$2,167.88	1	View details
7810-1B7810-1B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 39.8 Nm stall, reversible$2,144.81	352	29	1/2"	$2,144.81	1	View details
7810-B7810-B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 39.8 Nm stall, reversible$2,114.06	352	29	1/2"	$2,114.06	1	View details
7811-1B7811-1B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 74 Nm stall, reversible$2,160.19	655	55	1/2"	$2,160.19	1	View details
7811-B7811-B \| Multi-Vane Air Motor, inline planetary gear, 0.7 hp, 74 Nm stall, reversible$2,114.06	655	55	1/2"	$2,114.06	1	View details
7812-1B7812-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 75.5 Nm stall$2,136.68	668	56	1/2"	$2,136.68	1	View details
7812-B7812-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 75.5 Nm stall$1,983.38	668	56	1/2"	$1,983.38	1	View details
7813-1B7813-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 41.2 Nm stall$2,136.68	365	30	1/2"	$2,136.68	1	View details
7813-B7813-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 41.2 Nm stall$1,968.00	365	30	1/2"	$1,968.00	1	View details
7814-1B7814-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall$1,890.68	12	1	1/2"	$1,890.68	1	View details
7814-B7814-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall$1,783.50	12	1	1/2"	$1,783.50	1	View details
7815-1B7815-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall$2,095.68	194	16	1/2"	$2,095.68	1	View details
7815-B7815-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall$1,991.06	194	16	1/2"	$1,991.06	1	View details
7816-1B7816-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 5.5 Nm stall$1,890.68	49	4.1	1/2"	$1,890.68	1	View details
7816-B7816-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 5.5 Nm stall$1,745.06	49	4.1	1/2"	$1,745.06	1	View details
7817-1B7817-1B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 10.3 Nm stall$1,806.56	91	7.6	1/2"	$1,806.56	1	View details
7817-B7817-B \| Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 10.3 Nm stall$1,806.56	91	7.6	1/2"	$1,806.56	1	View details
8274-1A8274-1A \| Multi-Vane Air Motor, inline planetary gear, 0.65 hp, 32 Nm stall, reversible$2,824.27	283	24	8-Jul	$2,824.27	1	View details
8274-2A8274-2A \| Multi-Vane Air Motor, inline planetary gear, 0.65 hp, 59 Nm stall, reversible$2,824.27	522	44	8-Jul	$2,824.27	1	View details
8274-3A8274-3A \| Multi-Vane Air Motor, inline planetary gear, 0.65 hp, 71 Nm stall, reversible$3,075.00	628	52	8-Jul	$3,075.00	1	View details
8274-4A8274-4A \| Multi-Vane Air Motor, inline planetary gear, 0.65 hp, 125 Nm stall, reversible$3,055.78	1106	92	8-Jul	$3,055.78	1	View details
8274-5A8274-5A \| Multi-Vane Air Motor, inline planetary gear, 0.65 hp, 206 Nm stall, reversible$3,075.00	1823	152	8-Jul	$3,075.00	1	View details
8274-6A8274-6A \| Multi-Vane Air Motor, inline planetary gear, 0.65 hp, 206 Nm stall, reversible$3,075.00	1823	152	8-Jul	$3,075.00	1	View details
8274-A8274-A \| Multi-Vane Air Motor, inline planetary gear, 0.65 hp, 18 Nm stall, reversible$2,824.27	159	13	8-Jul	$2,824.27	1	View details
8276-1A8276-1A \| Multi-Vane Air Motor, inline planetary gear, 0.9 hp, 37 Nm stall$2,824.27	327	27	8-Jul	$2,824.27	1	View details
8276-2A8276-2A \| Multi-Vane Air Motor, inline planetary gear, 0.9 hp, 68 Nm stall$2,824.27	602	50	8-Jul	$2,824.27	1	View details
8276-3A8276-3A \| Multi-Vane Air Motor, inline planetary gear, 0.9 hp, 82 Nm stall$3,168.51	726	60	8-Jul	$3,168.51	1	View details
8276-4A8276-4A \| Multi-Vane Air Motor, inline planetary gear, 0.9 hp, 143 Nm stall$3,143.73	1266	105	8-Jul	$3,143.73	1	View details
8276-5A8276-5A \| Multi-Vane Air Motor, inline planetary gear, 0.9 hp, 206 Nm stall$3,036.56	1823	152	8-Jul	$3,036.56	1	View details
8276-6A8276-6A \| Multi-Vane Air Motor, inline planetary gear, 0.9 hp, 206 Nm stall$3,168.51	1823	152	8-Jul	$3,168.51	1	View details

Overview

2200 Series, In-Line planetary gear, Multi-vane Air Motors. Milling motor versions ideal for applications with high side loading such as milling, cutting and de-burring. Fractional horsepower, 0.85 hp (0.634 Kw). 170 rpm to 18,000 rpm with adjustability through air controls. Stackable gearing allows additional gear reductions. Integral erickson style collet for improved accuracy in precision applications. Side mount and Straddle milling motor versions are also available.

Features & Benefits
Max Free Speed: 450 - 18,000 rpm
1 Year Warranty
Max Free Speed: 450 - 18
000 rpm
