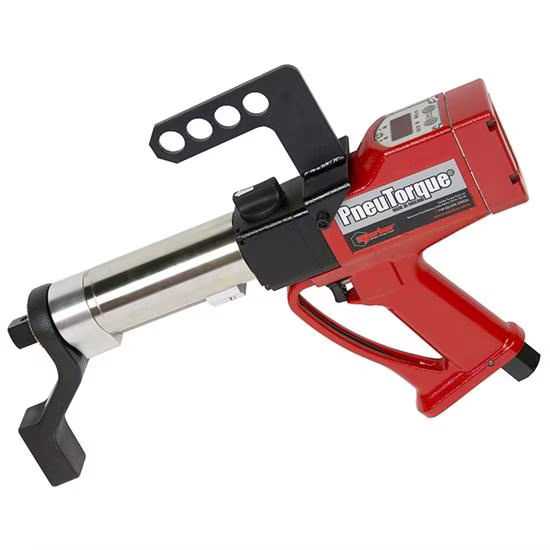

PTM Pneumatic Torque Multiplier

Using twin motor technology, the PTM series of PneuTorques is engineered to be amongst the lightest and fastest on the market. For example, the 800 N·m version has a gearbox diameter of just 52 mm, allowing excellent bolt access, and has a maximum free running speed of 224 rpm. Torque control is normally achieved by adjustment of air pressure. An air pressure versus torque graph and a calibration certificate is supplied with each tool.

Models and pricing below

Models Available

30 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Model	Drive size	Length (mm)	Price	Qty
PTM-80-2700180296.B08 \| PTM-80-2700 \| PTM-80-2700 1 in. SQ. DR.$7,550.65	PTM-80-2700	1'' square	—	$7,550.65	1	View details
PTM-52-500-B18100.B06 \| PTM-52-500-B \| 3/4 in. Square 500 Nm Torque Multiplier, Bi-Directional, Stall, 224 rpm$7,168.51	PTM-52-500-B	3/4'' square	333	$7,168.51	1	View details
PTM-52-500-F18100.F06 \| PTM-52-500-F \| 3/4 in. Square 500 Nm Torque Multiplier, Forward, Stall, 224 rpm$6,763.43	PTM-52-500-F	3/4'' square	284	$6,763.43	1	View details
PTM-52-800-B18101.B06 \| PTM-52-800-B \| 3/4 in. Square 800 Nm Torque Multiplier, Bi-Directional, Stall, 148 rpm$6,827.15	PTM-52-800-B	3/4'' square	333	$6,827.15	1	View details
PTM-52-800-F18101.F06 \| PTM-52-800-F \| 3/4 in. Square 800 Nm Torque Multiplier, Forward, Stall, 148 rpm$6,763.43	PTM-52-800-F	3/4'' square	284	$6,763.43	1	View details
PTM-72-1000-B18102.B06 \| PTM-72-1000-B \| 3/4 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 122 rpm$7,149.71	PTM-72-1000-B	3/4'' square	365	$7,149.71	1	View details
PTM-72-1000-F18102.F06 \| PTM-72-1000-F \| 3/4 in. Square 1000 Nm Torque Multiplier, Forward, Stall, 122 rpm$7,021.73	PTM-72-1000-F	3/4'' square	316	$7,021.73	1	View details
PTM-72-1350-B18103.B08 \| PTM-72-1350-B \| 1 in. Square 1350 Nm Torque Multiplier, Bi-Directional, Stall, 86 rpm$7,149.71	PTM-72-1350-B	1'' square	365	$7,149.71	1	View details
PTM-72-1350-F18103.F08 \| PTM-72-1350-F \| 1 in. Square 1350 Nm Torque Multiplier, Forward, Stall, 86 rpm$7,021.73	PTM-72-1350-F	1'' square	316	$7,021.73	1	View details
PTM-72-2000-B18104.B08 \| PTM-72-2000-B \| 1 in. Square 2000 Nm Torque Multiplier, Bi-Directional, Stall, 58 rpm$7,323.98	PTM-72-2000-B	1'' square	398	$7,323.98	1	View details
PTM-72-2000-F18104.F08 \| PTM-72-2000-F \| 1 in. Square 2000 Nm Torque Multiplier, Forward, Stall, 58 rpm$7,291.15	PTM-72-2000-F	1'' square	349	$7,291.15	1	View details
PTM-92-2700-B18106.B08 \| PTM-92-2700-B \| PTM-92-2700-B WITH 1 IN. SQ. DR.$8,183.03	PTM-92-2700-B	1'' square	424	$8,183.03	1	View details
PTM-119-4500-B18108.B12 \| PTM-119-4500-B \| 1-1/2 in. Square 4500 Nm Torque Multiplier, Bi-Directional, Stall, 23 rpm$9,120.59	PTM-119-4500-B	1-1/2'' square	456	$9,120.59	1	View details
PTM-119-6000-B18109.B12 \| PTM-119-6000-B \| 1-1/2 in. Square 6000 Nm Torque Multiplier, Bi-Directional, Stall, 15.5 rpm$9,120.59	PTM-119-6000-B	1-1/2'' square	456	$9,120.59	1	View details
PTM-52-500-B-IC18110.B06 \| PTM-52-500-B-IC \| 3/4 in. Square 500 Nm Torque Multiplier, Bi-Directional, 224 rpm$14,532.87	PTM-52-500-B-IC	3/4'' square	397	$14,532.87	1	View details
PTM-52-800-B-IC18111.B06 \| PTM-52-800-B-IC \| 3/4 in. Square 800 Nm Torque Multiplier, Bi-Directional, 148 rpm$14,532.87	PTM-52-800-B-IC	3/4'' square	397	$14,532.87	1	View details
PTM-72-1000-B-IC18112.B06 \| PTM-72-1000-B-IC \| PTM-72-1000-B-IC 3/4 IN. SQ DR$14,839.27	PTM-72-1000-B-IC	3/4'' square	422	$14,839.27	1	View details
PTM-72-1350-B-IC18113.B08 \| PTM-72-1350-B-IC \| PTM-72-1350-B-IC INT SHUT OFF 1 IN. SQ DR$14,839.27	PTM-72-1350-B-IC	1'' square	422	$14,839.27	1	View details
PTM-72-2000-B-IC18114.B08 \| PTM-72-2000-B-IC \| 1 in. Square 2000 Nm Torque Multiplier, Internal Control Shut Off, 58 rpm$15,160.65	PTM-72-2000-B-IC	1'' square	453	$15,160.65	1	View details
PTM-92-4000-B18119.B08 \| PTM-92-4000-B \| PTM-92-4000-B STALL 1 IN. SQ DR$8,183.03	PTM-92-4000-B	1'' square	424	$8,183.03	1	View details
PTM-52-500-B-EC18120.B06 \| PTM-52-500-B-EC \| 3/4 in. Square 500 Nm Torque Multiplier, Bi-Directional, 224 rpm$14,985.77	PTM-52-500-B-EC	3/4'' square	397	$14,985.77	1	View details
PTM-52-800-B-EC18121.B06 \| PTM-52-800-B-EC \| 3/4 in. Square 800 Nm Torque Multiplier, Bi-Directional, 148 rpm$14,985.77	PTM-52-800-B-EC	3/4'' square	397	$14,985.77	1	View details
PTM-72-1000-B-EC18122.B06 \| PTM-72-1000-B-EC \| 3/4 in. Square 1000 Nm Torque Multiplier, External Control Shut Off, 122 rpm$15,316.04	PTM-72-1000-B-EC	3/4'' square	422	$15,316.04	1	View details
PTM-72-1350-B-EC18123.B08 \| PTM-72-1350-B-EC \| 1 in. Square 1000 Nm Torque Multiplier, External Control Shut Off, 86 rpm$15,316.04	PTM-72-1350-B-EC	1'' square	422	$15,316.04	1	View details
PTM-72-2000-B-EC18124.B08 \| PTM-72-2000-B-EC \| 1 in. Square 2000 Nm Torque Multiplier, External Control Shut Off, 58 rpm$15,662.51	PTM-72-2000-B-EC	1'' square	453	$15,662.51	1	View details
PTME-72-1000-B18140.B06 \| PTME-72-1000-B \| 3/4 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 122 rpm$7,661.36	PTME-72-1000-B	3/4'' square	428.4	$7,661.36	1	View details
PTME-72-1000-F18140.F06 \| PTME-72-1000-F \| 3/4 in. Square 1000 Nm Torque Multiplier, Forward, Stall, 122 rpm$7,637.49	PTME-72-1000-F	3/4'' square	378.9	$7,637.49	1	View details
PTME-72-2000-B18141.B08 \| PTME-72-2000-B \| 1 in. Square 2000 Nm Torque Multiplier, Bi-Directional, Stall, 58 rpm$7,921.22	PTME-72-2000-B	1'' square	486.9	$7,921.22	1	View details
PTME-72-2000-F18141.F08 \| PTME-72-2000-F \| 1 in. Square 2000 Nm Torque Multiplier, Forward, Stall, 58 rpm	PTME-72-2000-F	1'' square	437.2		1	View details
PTME-72-1000-B18149.B08 \| PTME-72-1000-B \| 1 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 140 rpm$7,617.71	PTME-72-1000-B	1'' square	434.6	$7,617.71	1	View details

Features & Benefits
Efficient air motor
Exceptionally low vibration levels
Very quiet operation
Light weight design
